DSF02 Drum Rack

No review yet. Write Review

$0.00

Description

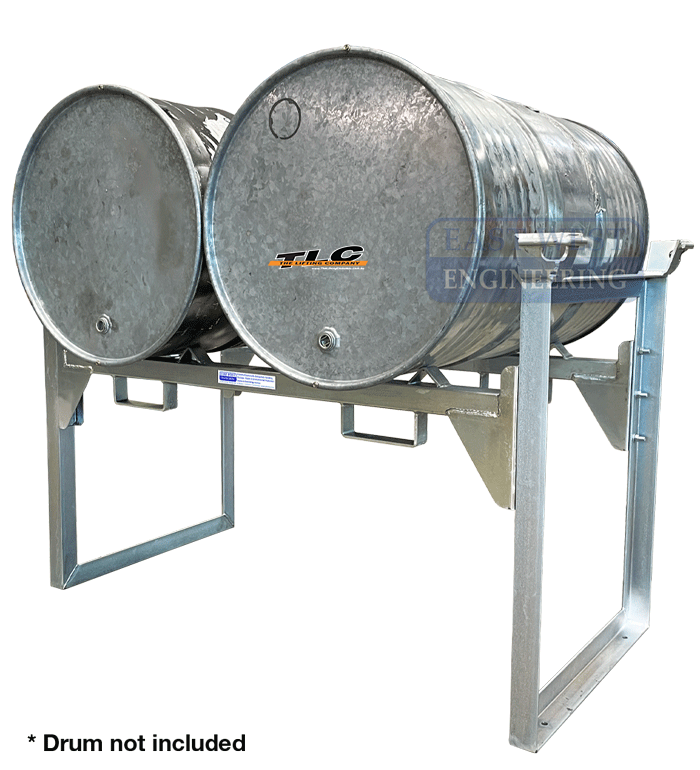

The DSF02 Drum Rack is designed to safely store up to two standard 205 litre drum.

FEATURES:
• Suits storage of up to two standard 205 litre drums
• Support brackets hold drum in position
• Stackable 3 high when empty or 2 high when loaded

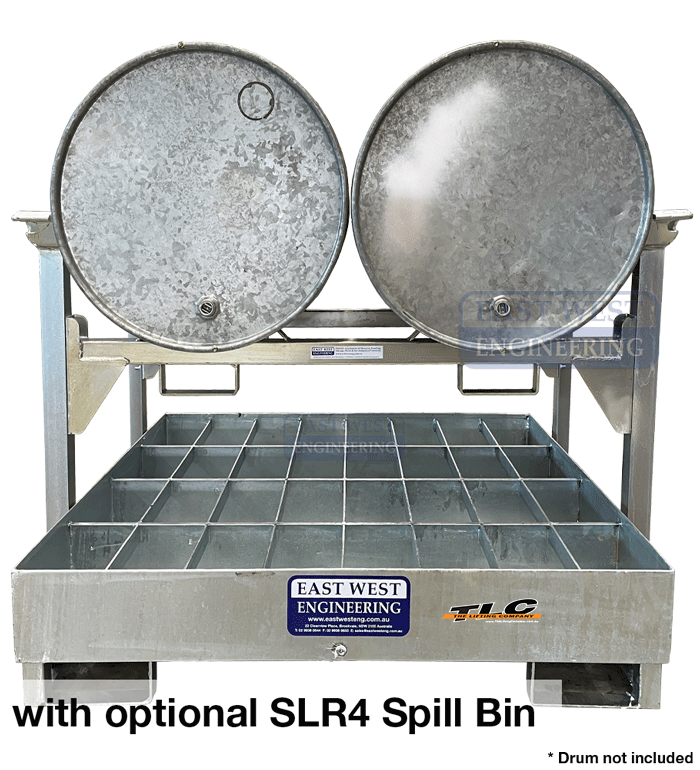

• Combine with SLR42 Spill Bin for protection against costly and environmentally damaging chemical spills
• Also available in a 1 drum model (DSF01)
• Zinc finish

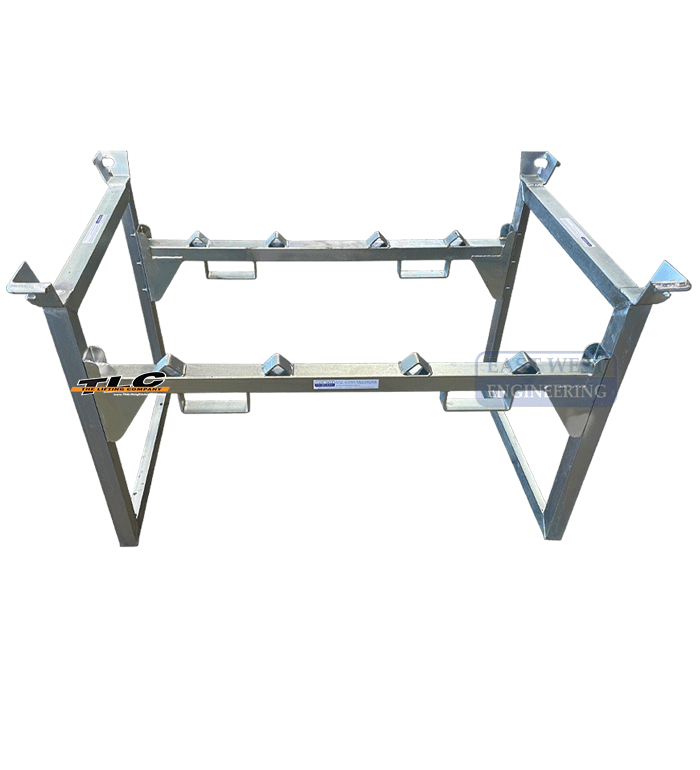

Drum rack is supplied 'flatpack' (for on-site assembly)

	No. of Drums	2
	Working Load Limit (WLL)	600kg per unit
	Dimensions	1425(w) x 765(d) x 895(h) mm
	Height incl. 205L Drum	1205mm
	Unit Weight	45kg
	Fork Stirrup Size	160 x 65mm
	Fork Stirrup Centres	664mm

Back to EastWest Engineering Range
