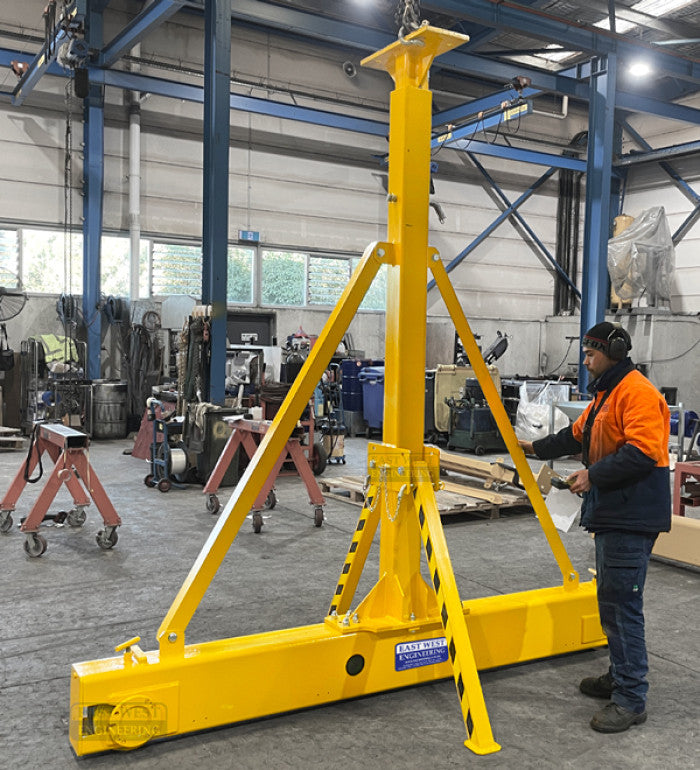

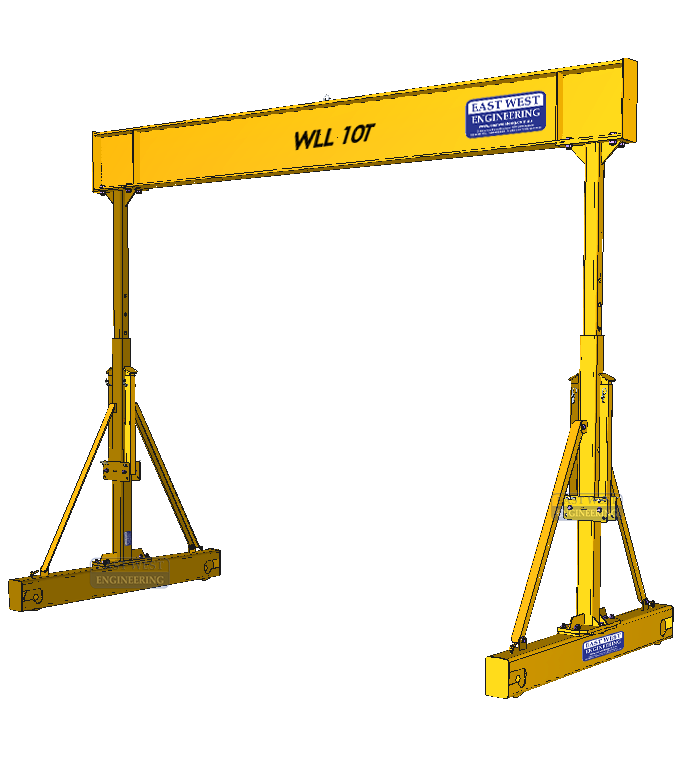

CXG Mobile Gantry Crane
The CXG Mobile Gantry Crane is designed as a flexible lifting solution for moving heavy materials and equipment around the worksite without the need to install expensive or permanent structures. Its portable design allows heavy equipment to be moved in place during an install, for loading or unloading operations, or to relocate the crane for use in more than one work area or facility. These units are also the ideal solution for installing heavy awkward loads like an escalator on worksites with limited overhead space.
FEATURES:
• Suits environments that require heavier lifts weighing up to 10T
• Allows lifting and moving of heavy materials and equipment
• Mobile design allows use in multiple work area or rented facilities
• Low friction wheel assemblies

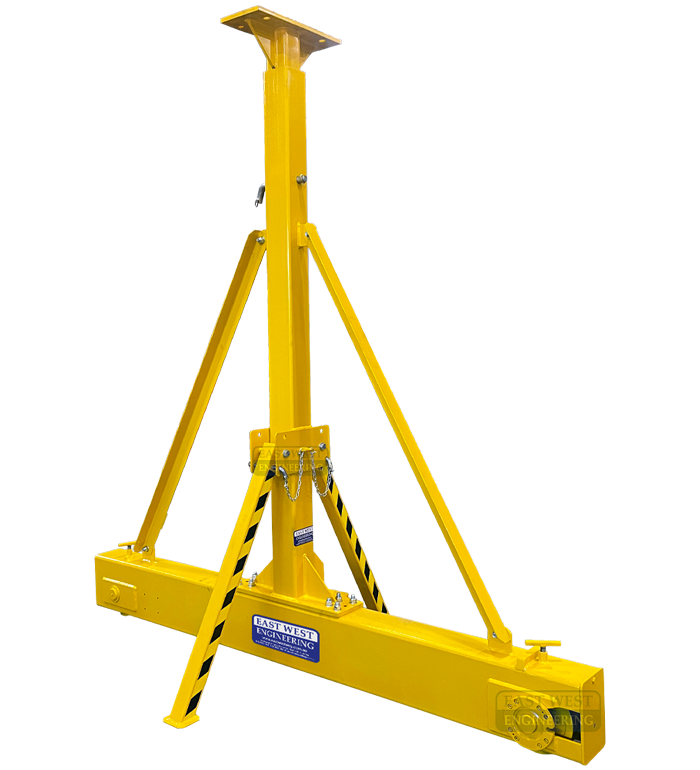

• Drop down legs provide support during assembly of unit
• No costly, permanent structures required
• Movable under load
• 10T Geared Trolley (CXG10-GT) available on request
• Design & engineered to relevant Australian Standards
• Ideal for use in manufacturing facilities, construction sites, shipyards, scrap yards, railyards and steel mills.
• Enamel paint finish
Supplied standard as flatpack (for on-site assembly)
 |
Model |
Distributed Load (kg) |
Clear Under (mm) |
Span (mm) |
Unit Weight (kg) |
| CXG10-450 | 10,000 |
2970 - 4370 | 4500 | 1700 | |
| CXG10-550 | 10,000 | 2970 - 4370 | 5500 | 1860 | |
| CXG10-700 | 10,000 |
2970 - 4370 | 7000 | 1950 |
 |
Moveable under load laterally on the x-axis. Tracks required for mobility when loaded
|
