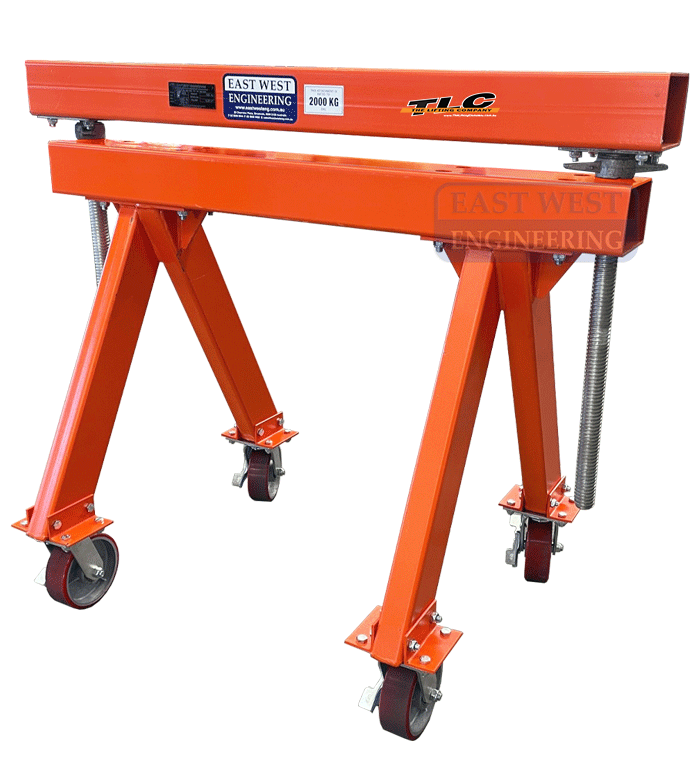

ATSJW Support Trestle - Adjustable Height + Wheels
The ATSJW Support Trestle with adjustable height and lockable wheels is designed to safely support industrial loads around the workplace or construction site. These heavy duty steel units come in a range of sizes to suit various applications.
FEATURES:
• Heavy duty steel construction for maximum load support
• Adjustable height
• Lockable wheels allow manoeuvrability around the workplace

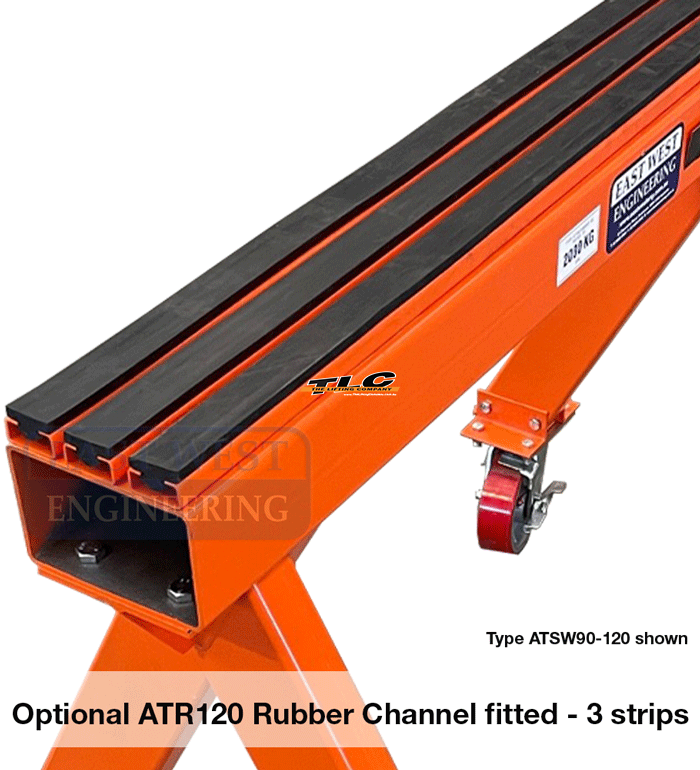

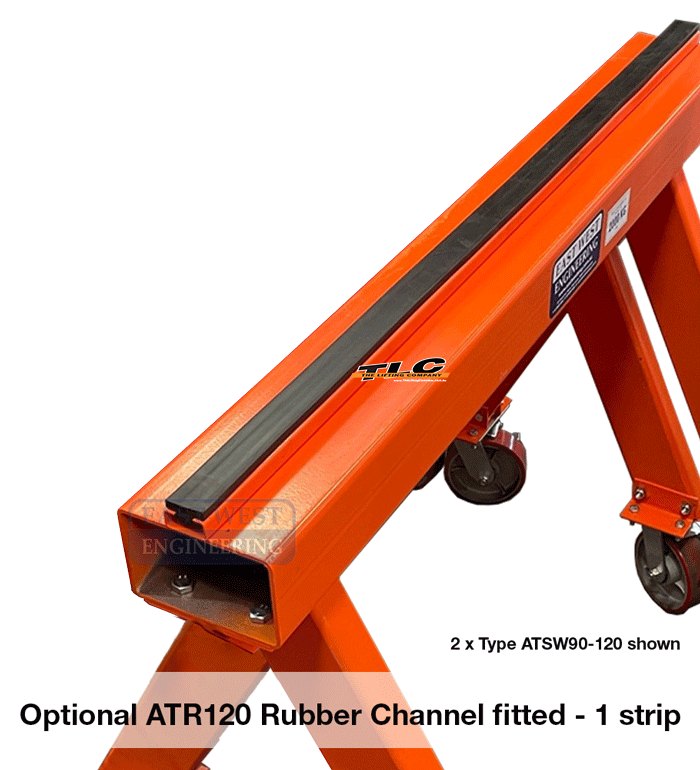

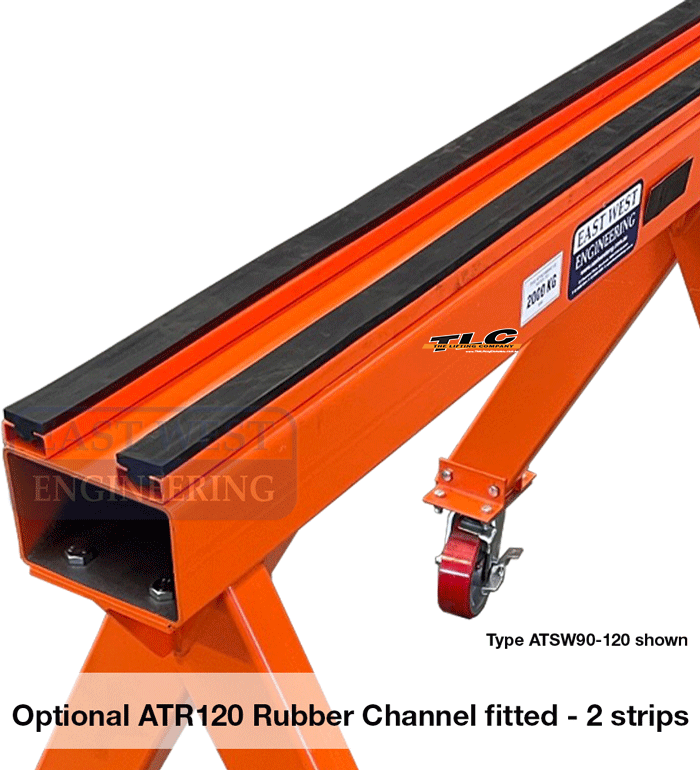

• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement
• Available in standard models (ATS)
• Available in models with lockable wheels (ATSW) for mobility around the workshop
• Available in models with adjustable height (ATSJ)
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish
 |
Model |
Distributed Load (kg) |
Length (mm) |
Height w/o adj. beam (mm) |
Height Lowered (mm) |
Height Extended (mm) |
Unit Weight (kg) |
| ATSJW105-120 | 2000 |
1200 | 890 | 1050 | 1500 | 81 | |
| ATSJW125-120 | 2000 | 1200 | 1090 | 1250 | 1700 | 90 |
* per trestle
 |
Optional ATRC120 Rubber profile channels are supplied in 1.2m lengths. 2 units required for 2.4m length trestles
Trestles sold separately. |
