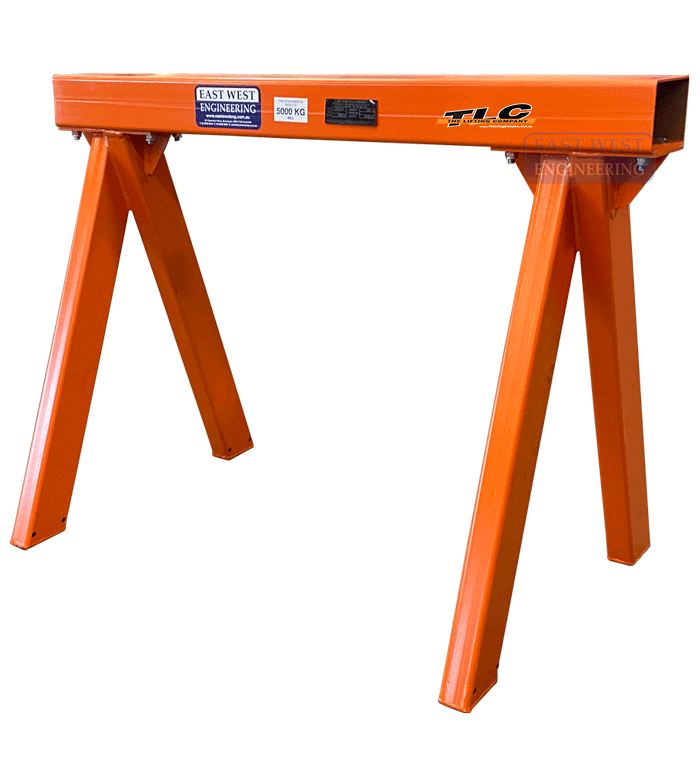

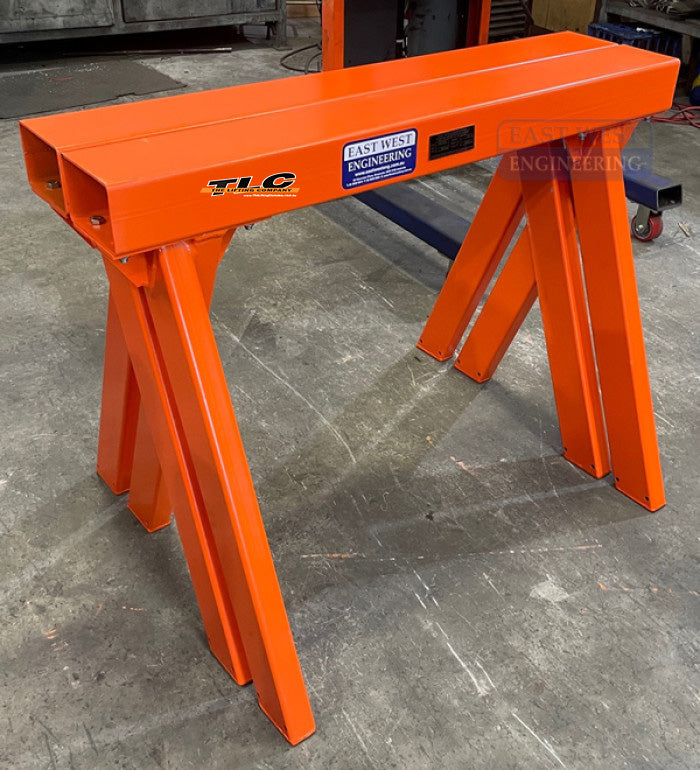

ATS Support Trestle

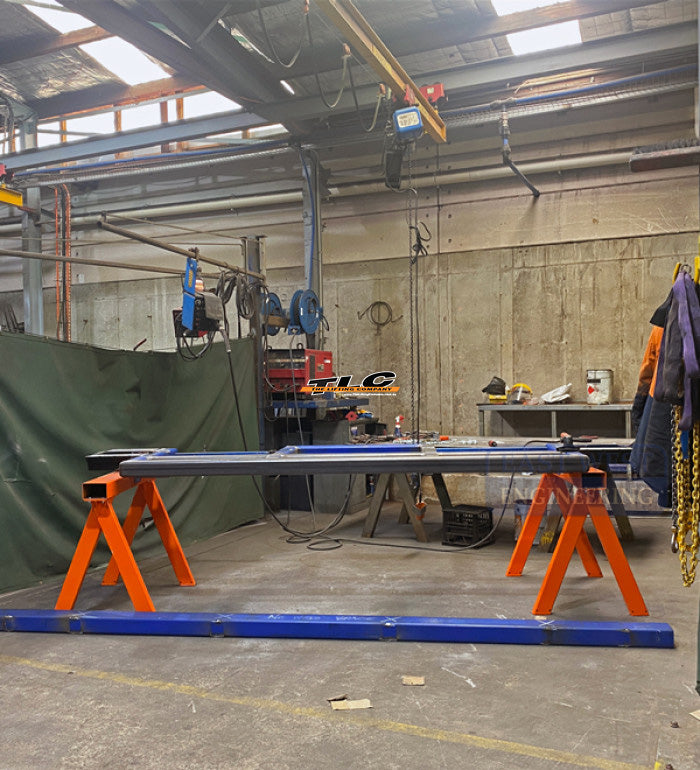

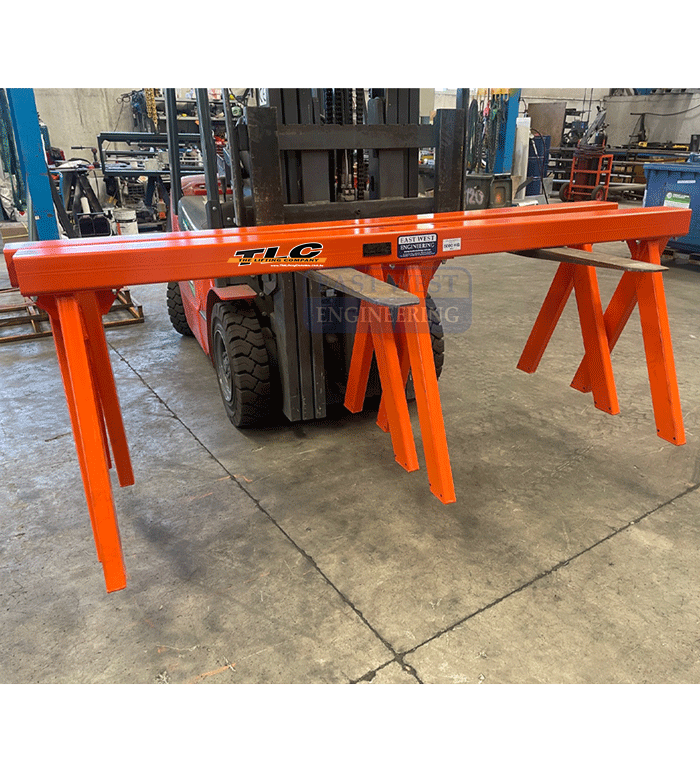

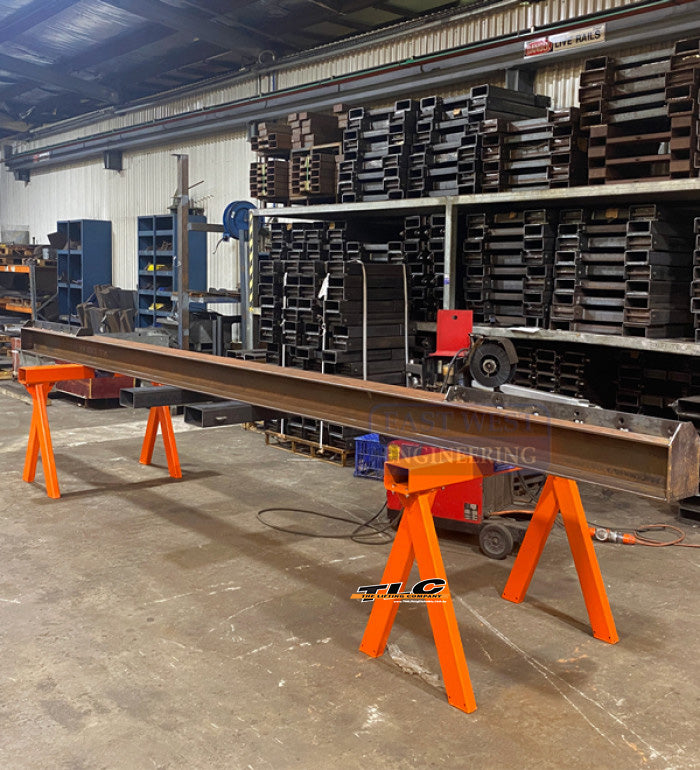

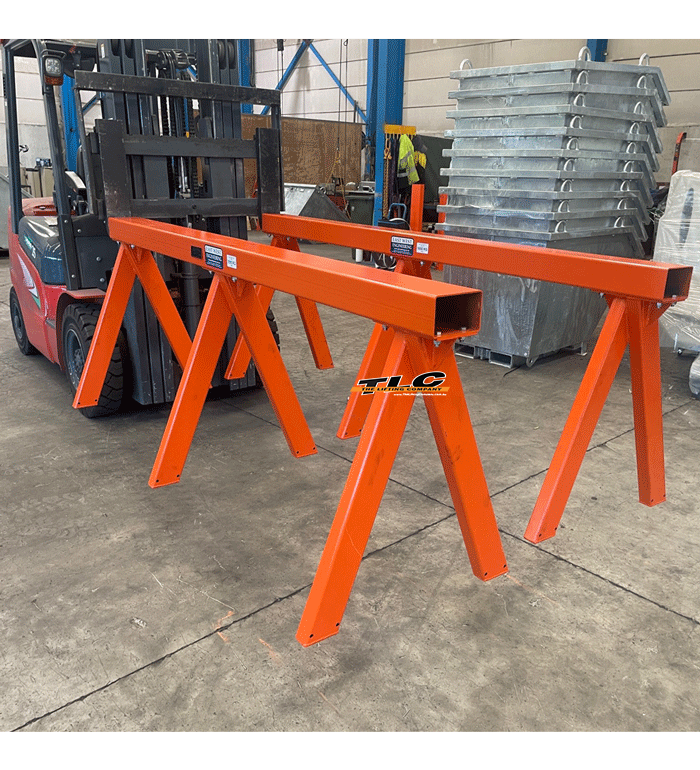

The ATS Support Trestle is designed to safely support industrial loads around the workplace or construction site. These heavy duty steel units come in a range of sizes to suit various applications.
FEATURES:
• Heavy duty steel construction for maximum load support

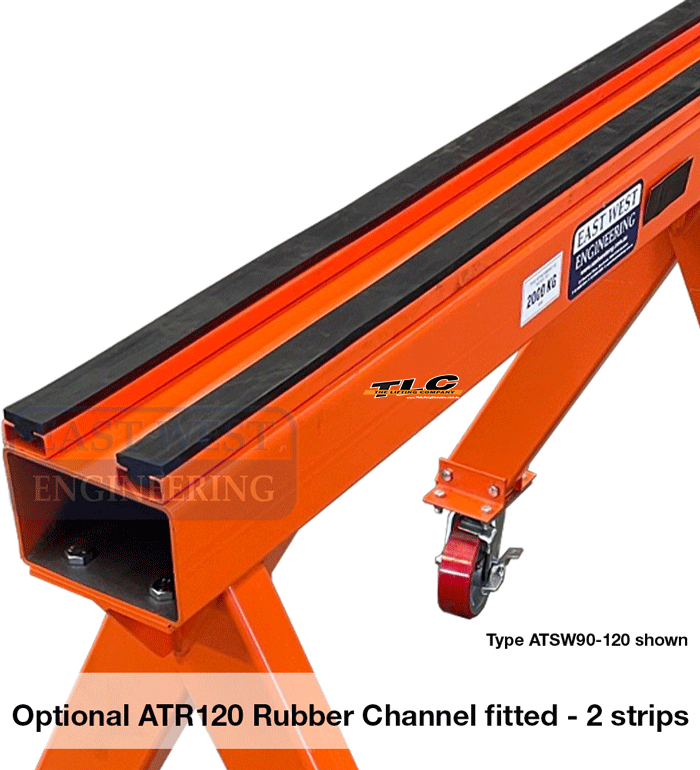

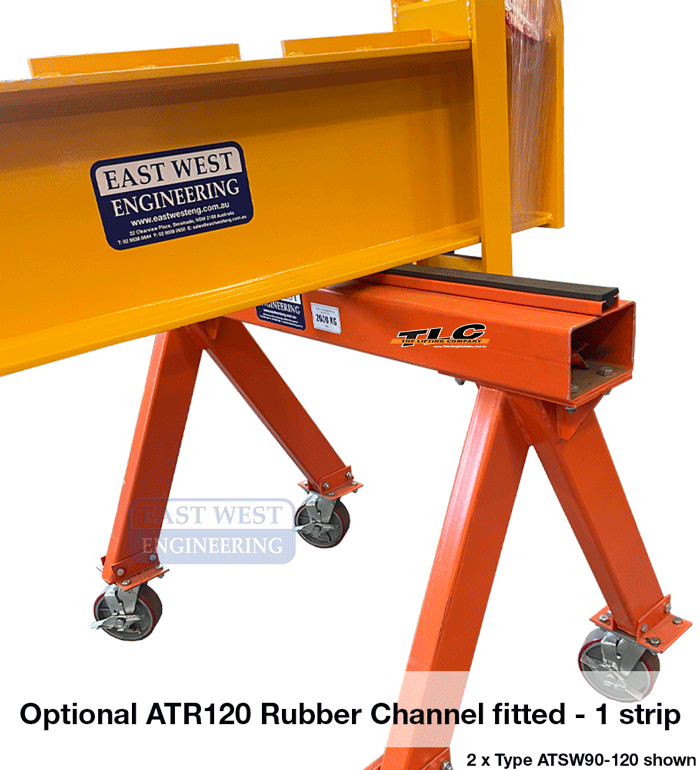

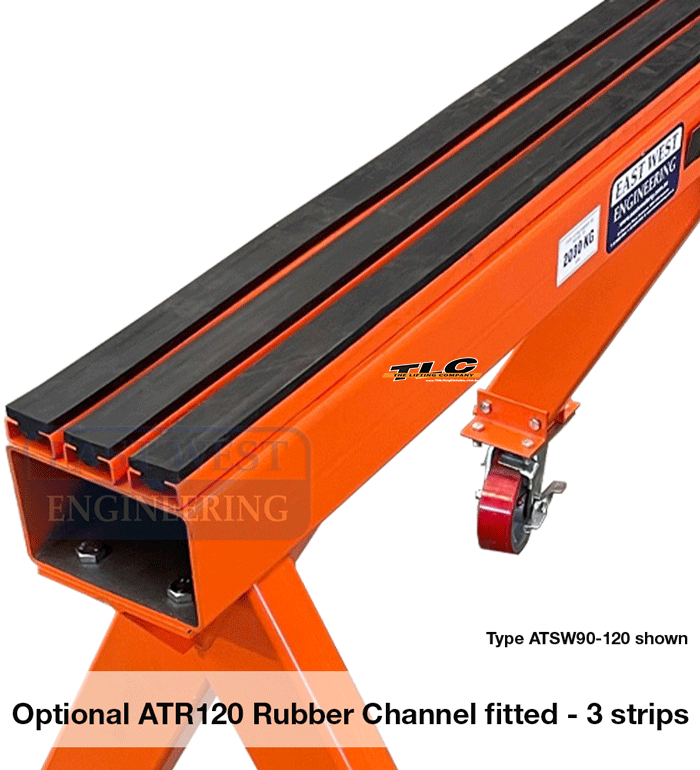

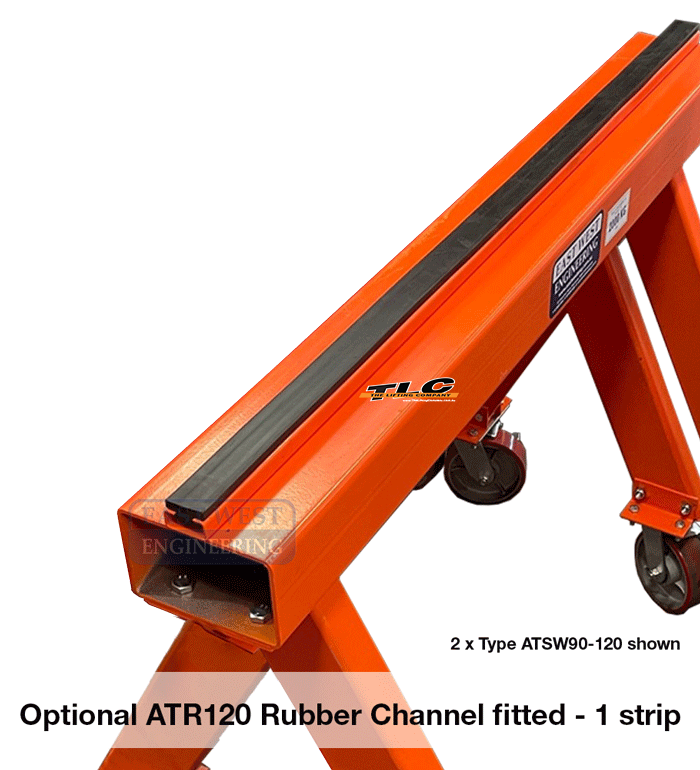

• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement
• Available in models with lockable wheels (ATSW) for mobility around the workshop
• Available in models with adjustable height (ATSJ)
• Available in models with adjustable height and wheels (ATSJW) for complete flexibility
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish
Supplied standard as flatpack (for on-site assembly)
 |
Model |
Distributed Load (kg) |
Length (mm) |
Height (mm) |
No. of Legs |
Unit Weight (kg) |
| ATS70-120 | 5000 |
1200 | 700 | 2 | 35 | |
| ATS90-120 | 5000 | 1200 | 900 | 2 | 40 | |
| ATS70-240 | 5000 |

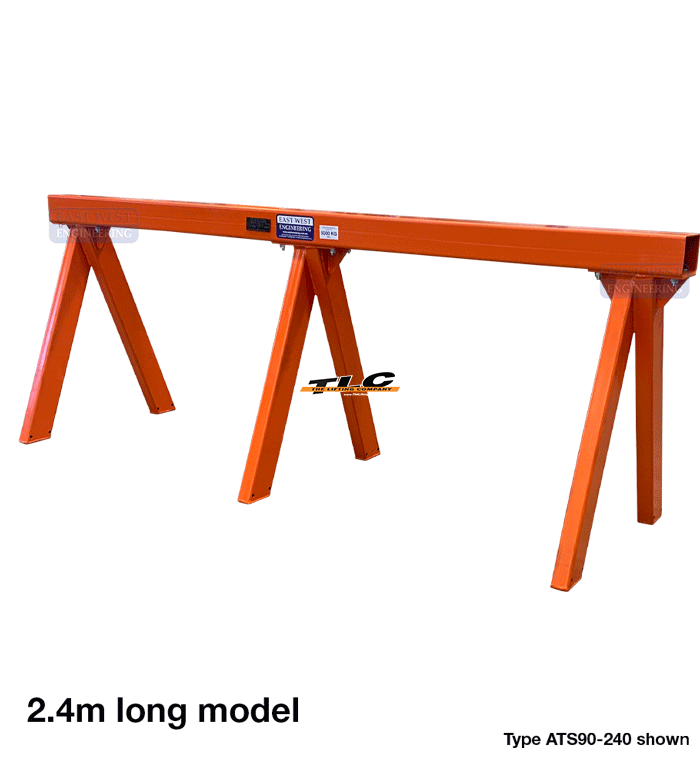

2400 | 700 | 3 | 60 | |
| ATS90-240 | 5000 | 2400 | 900 | 3 | 68 |
* per trestle
 |
Optional ATRC120 Rubber profile channels are supplied in 1.2m lengths. 2 units required for 2.4m length trestles
Trestles sold separately. |
