APV100-AT Pipe Trolley - All-Terrain
The APV100 All-Terrain Pipe Trolley is designed to safely store and transport long length materials such as pipe, scaffolding and conduit on site and is sized to fit through a standard doorway. 2 puncture proof wheels are fitted to suit use on rough, uneven grounds. This mobile storage solutions increase worker productivity by keeping materials organised and close to work areas.
FEATURES:
• 400kg capacity

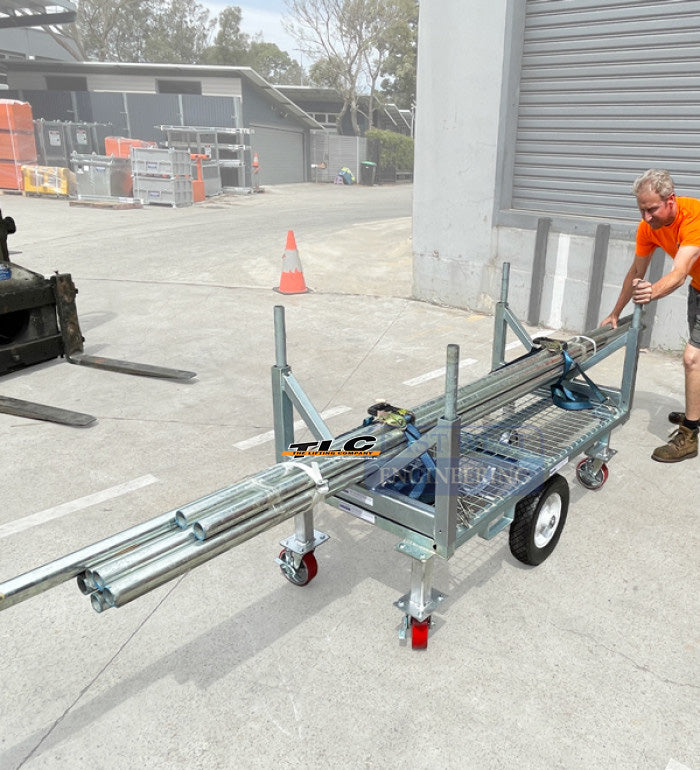

• Suitable to store and transport long materials such as pipe, scaffolding, conduit, tubing & bar stock
• Designed to fit through a standard doorframe for carting of loads on-site
• Removable V Frame for alternative loading requirements
• Removable corner posts supplied to suit higher load sizes
• 6 wheels (2 puncture proof 390mm + 4 x 150mm swivel with brakes) for use on rough, uneven grounds
• Also available with 6 poly/cast 150mm wheels (APV100) for easy manoeuvring around the factory
• Fork stirrups allow loaded trolley to be transported around site by forklift
• 4 tie down points for securing load
• Heavy duty construction for maximum stability
• Zinc finish

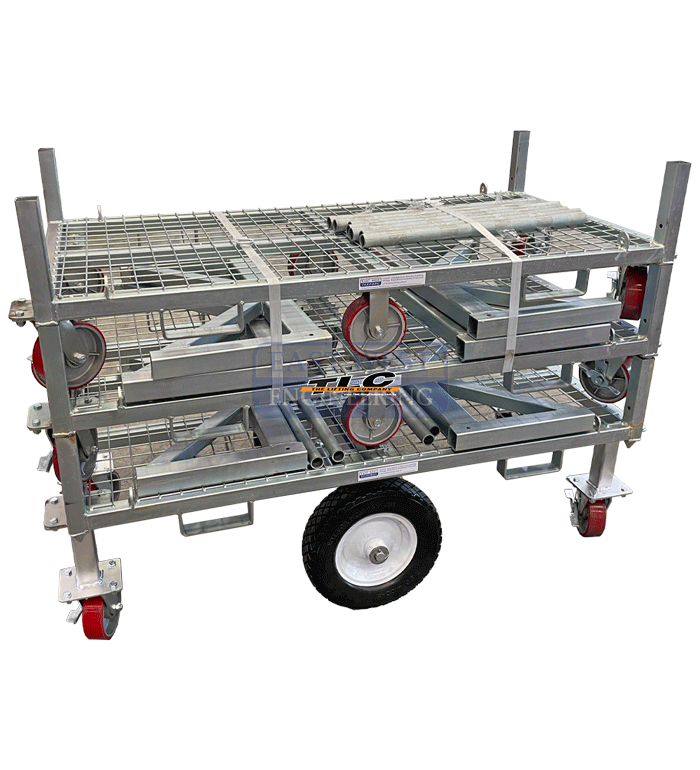

Supplied standard as flatpack (for on-site assembly)
 |
MODEL | APV100-AT |
| Working Load Limit (WLL) | 400kg | |
| Overall Dimensions* | 1610(l) x 760(w) x 860(h) mm |
|
| Unit Weight | 95kg (incl. V-Frame + Corner Posts) | |
| Fork Pocket Size | 155 x 55mm | |
| Fork Pocket Centres | 850mm |
* Overall dimensions are excluding removable corner posts (shown in picture)
 |
Due to transport safety requirements, wheels are supplied for fitment onsite, not pre-fit.
|
