WP-NC2R-FAID First Aid Rescue Cage
| Product | Code |
|---|---|
| First Aid Rescue Cage | WP-NC2R-FAID |
| First Aid Rescue Cage – QLD | WP-FA-QLD |
The First Aid Rescue Cage is designed in strict accordance with Australian Standard AS1418.17 for rescue and evacuation on worksites where injured personnel need to be safely evacuated.
FEATURES
- Suitable for use with a standard rescue stretcher
- Can transport up to 6 personnel

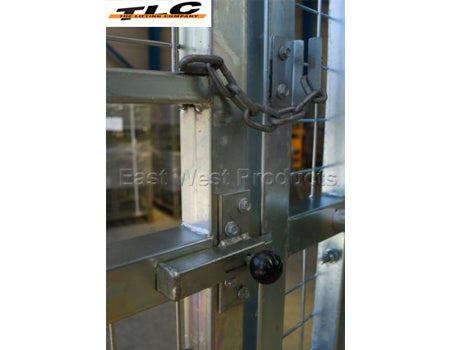

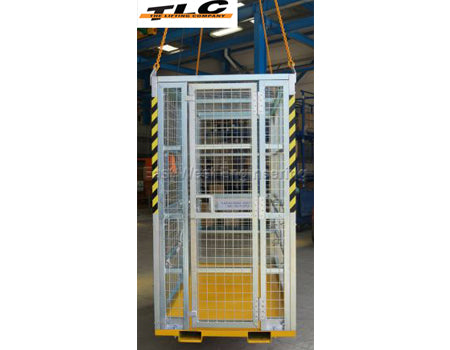

- Full height, outward opening gate for easy stretcher access

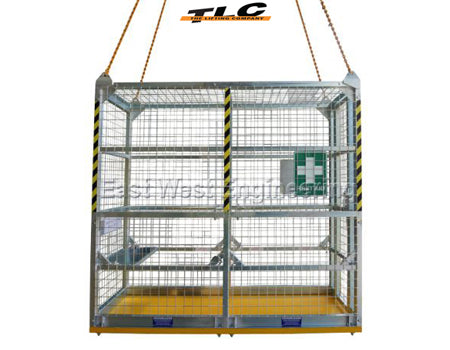

- Fully enclosed mesh cage for extra safety and protection in emergency situations

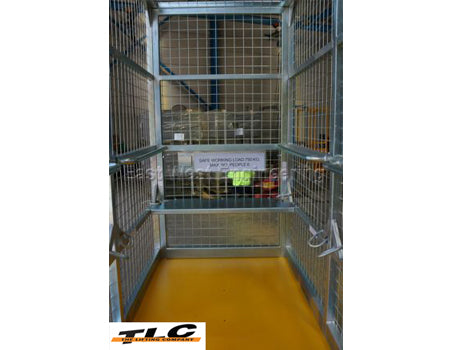

- Bolted seat fitted to accommodate non-stretcher personnel
- Fitted with 8 (eight) safety harness anchor points and internal hand rails
- Supplied with rated lifting chains
- Fork pockets provided for transport purposes only
- Work performed in this cage shall be limited to special tasks of short duration
- Load test certificate, risk control measure documents, work cover registration and comprehensive instructions supplied
- Zinc finish
SPECIFICATIONS
| Model |
Maximum Capacity |
Working Load Limit (kg) |
Dimensions |
Unit Weight (kg) |
| WP-NC2R-FAID |
6 people |
750 |
2400 x 1200 x 2253 |
500 |
| WP-FA-QLD |
6 people |
750 |
2900 x 1300 x 2352 |
615 |
Type WP-NC2R-FAID is not suitable for use in Queensland. For Queensland, type WP-FA-QLD has been designed and registered to comply with the QLD Tower Crane Code of Practice 2017.
All East West Engineering Crane Cages are supplied with a unique Load Test Certificate, comprehensive instructions, Risk Control Measure documents, and Work Cover registration.
** It is a mandatory requirement of AS1418.17 that suspension sling sets are supplied as an integral component of a personnel crane cage. If you are using or are offered a cage without dedicated chains or slings, that cage does not comply with Australian Standards and Design Registration requirements and should not be considered for the use of hoisting personnel.
