CGC100 IBC Cage

CGC100 IBC Cage

CGC100 IBC Cage

CGC100 IBC Cage

No review yet. Write Review

$0.00

Description

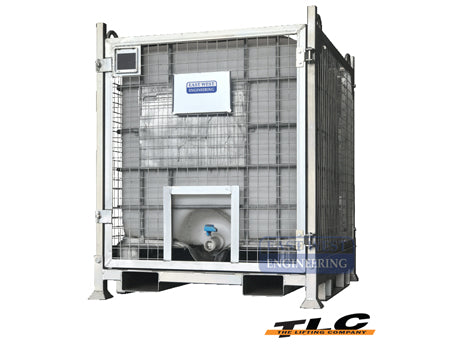

The CGC100 IBC Crane Cage has been designed to safely store and transport Intermediate Bulk Containers (IBCs) by crane or forklift.

FEATURES:
• Suitable for use with Intermediate Bulk Containers (IBCs)
• Large cut-out area allows ease of dispensing IBC from cage

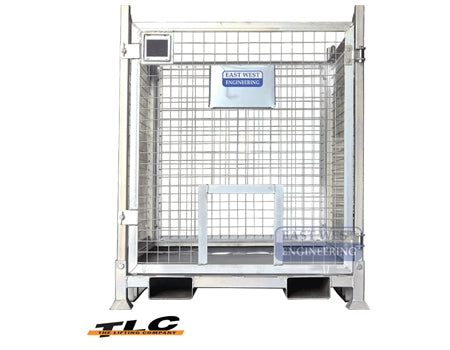

• Fully opening front gate for easy loading and unloading
• Stacks 3 high when empty or 2 high when loaded

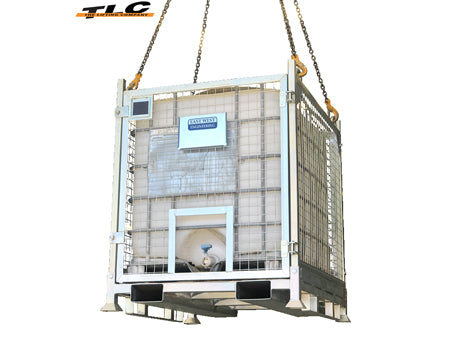

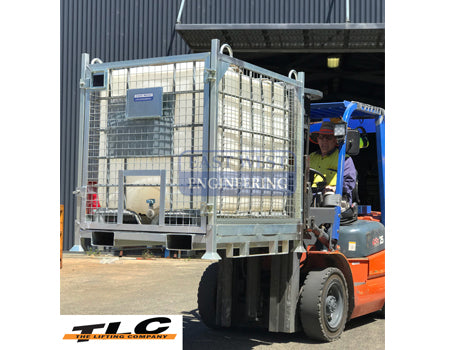

• Fitted with 4 point lift crane lugs and forklift pockets
• Zinc finish

Supplied standard as ‘flatpack’ for on-site assembly

	Working Load Limit (WLL)	1250kg
	Overall Dimensions	1170 x 1390 x 1380mm
	Inside Clearance	1020 x 1220mm
	Fork Pocket Size	185 x 85mm
	Fork Pocket Centres	620mm
	Unit Weight	205kg
