CSPN-01 Goods Cage
| Product | Code |
|---|---|
| Goods Cage – 1T | CSPN-1T |
| Goods Cage – 2T | CSPN-2T |
| Optional Lifting Frame | CSPN-CL |

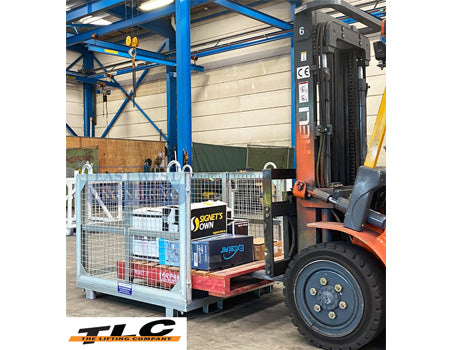

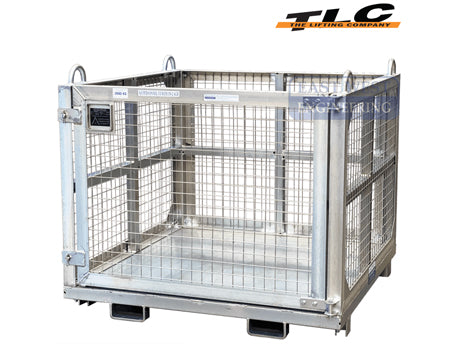

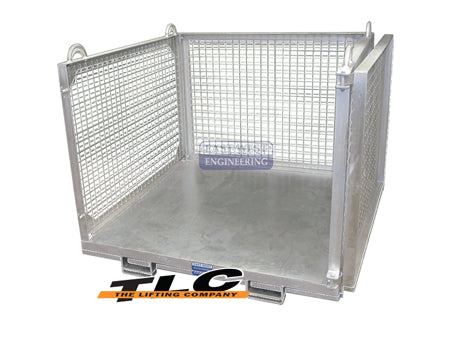

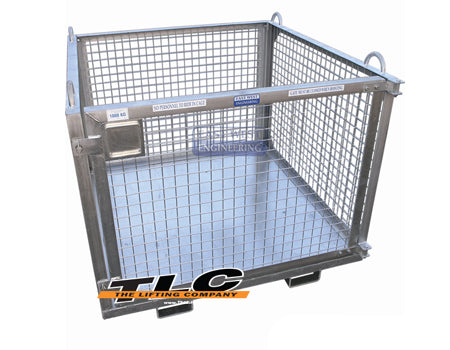

The CSPN Goods Cage has been designed to safely store and transport loose or palletised goods by crane or forklift.
FEATURES:
• Suitable for use with loose or palletised goods
• Available in 1T and 2T capacity models

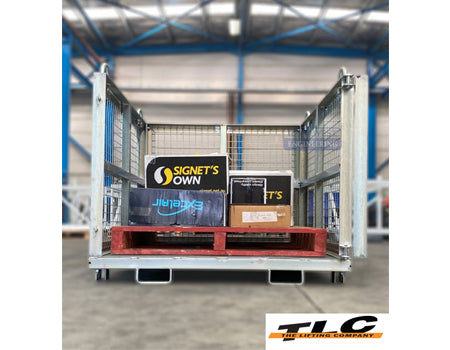

• Suits a 1200mm square pallet
• Fully opening front gate for easy loading and unloading of palletised goods

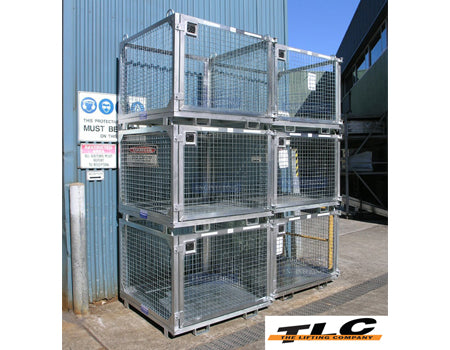

• Stacking feet allow cages to be stacked 3 high when empty or 2 high when loaded

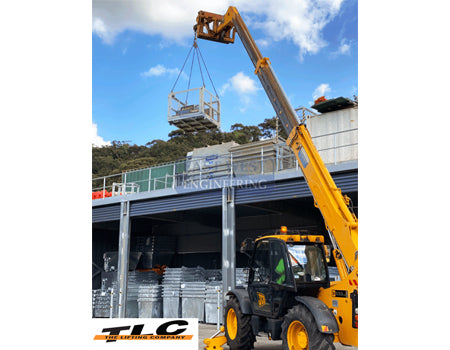

• Fitted with 4 point lift crane lugs and fork stirrups

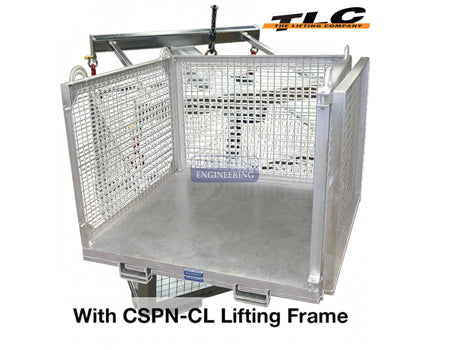

• Optional Lifting Frame (CSPN-CL) enables single point lifting where head height is an issue
• Zinc finish
Supplied standard as a fully assembled unit
SPECIFICATIONS:
| Model | Working Load Limit (kg) |
Overall Dimensions (mm) |
Gate Opening (mm) |
Fork Stirrup Size (mm) |
Fork Pocket Centres (mm) |
Unit Weight (mm) |
| CSPN-1T | 1000 | 1350 x 1350 x 1155 | 1250 | 155 x 60 | 680 | 175 |
| CSPN-2T | 2000 | 1350 x 1350 x 1200 | 1220 | 155 x 60 | 680 | 216 |
Product Support Documents:
-
CSPN-01 operation(Youtube)
1T WLL – Assembled
