CGC Crane/Forklift Goods Cages

CGC Crane/Forklift Goods Cages

CGC Crane/Forklift Goods Cages

CGC Crane/Forklift Goods Cages

No review yet. Write Review

$0.00

Description

Product	Code
1150 x 1150 – Flatpacked	CGC115
1150 x 1150 – Assembled	CGC115A
1300 x 1300 – Flatpacked	CGC130
1300 x 1300 – Assembled	CGC130A

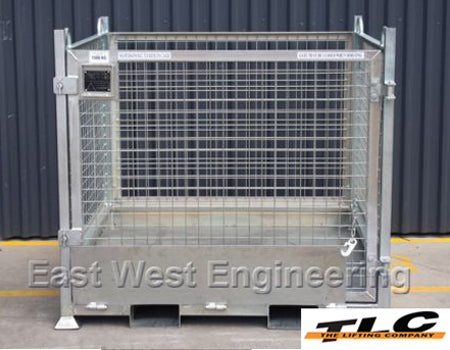

The CGC CRANE/FORKLIFT GOODS CAGE has been designed to safely store and transport loose or palletised goods by crane or forklift.

Suitable for use with loose or palletised goods

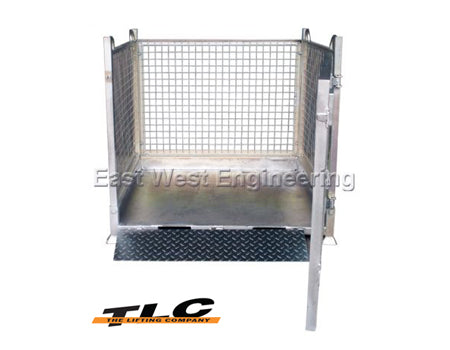

Fully opening front gate for easy loading and unloading of goods

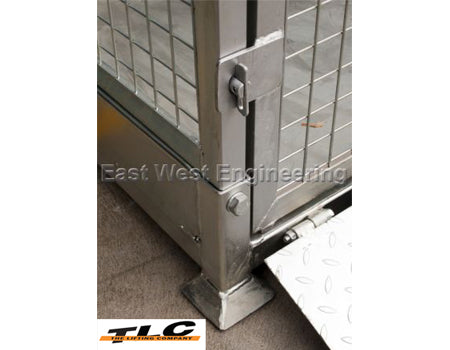

Drop down, removable access ramp for trolley access

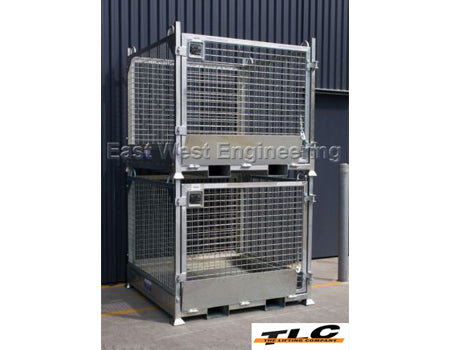

Stacking feet allow cages to be stacked 3 high when empty or 2 high when loaded
Fitted with 4 point crane lugs and forklift pockets
Durable zinc finish
Pocket size 185 x 85mm
Working Load Limit (WLL): 1000kg per cage
Certified to relevant Australian Standards
Supplied flatpacked as standard – for assembled version please order with ‘A’ suffix (e.g. CGC115A)

Note that CGC cages are not designed or certified to convey personnel

Model Code	Overall Dimensions (mm)	Inside Clearance (mm)	Unit Weight	Pocket Centres
CGC115	1200 x 1200 x 1180	1050 x 1050	180kg	500mm
CGC130	1350 x 1350 x 1180	1205 x 1205	210kg	550mm

Back to Crane Goods Cages
