Crane Drum Rotator
| Product | Code |
|---|---|
| Crane Drum Rotator | DBR40C |

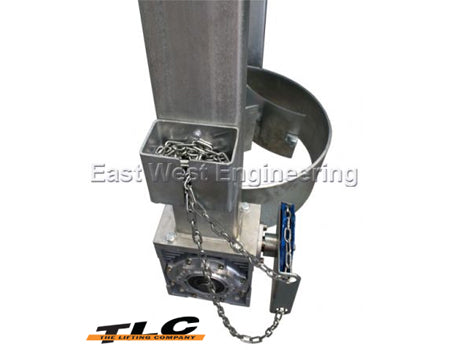

| Crane Drum Rotator + PBO (Chain) | DBR40C-PBO |

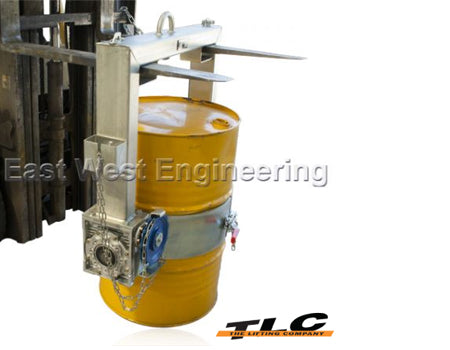

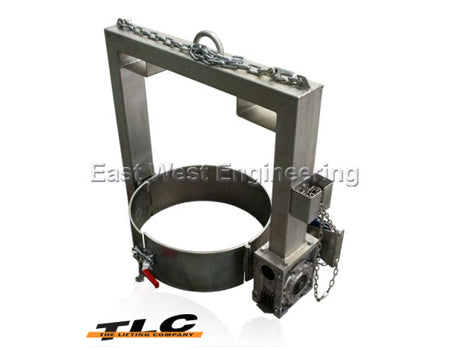

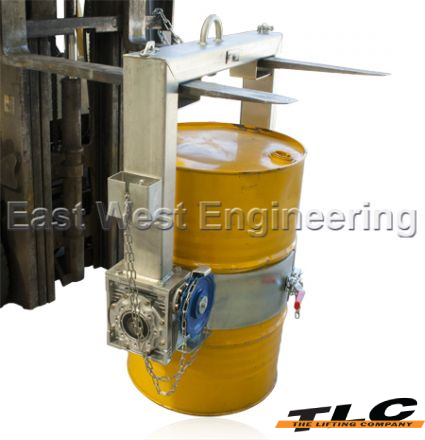

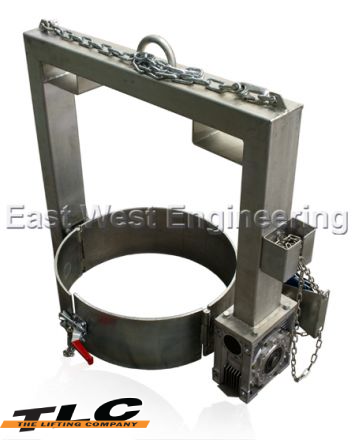

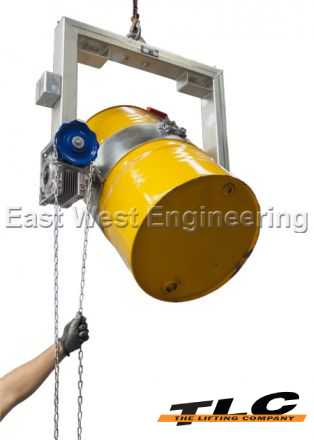

The DBR40C Drum Rotators are designed to lift and rotate 205 litre steel drums through 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when operator stops pulling the chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• For use with either overhead crane of forklift
• Suitable for drum rotation up to 3m above ground

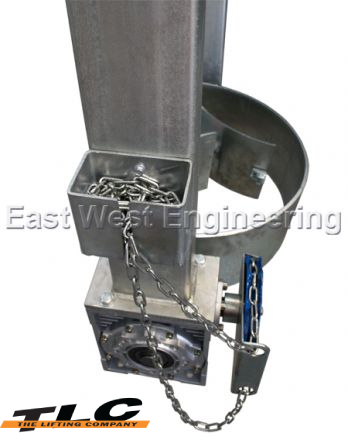

• Rotation carried out via a hand chain

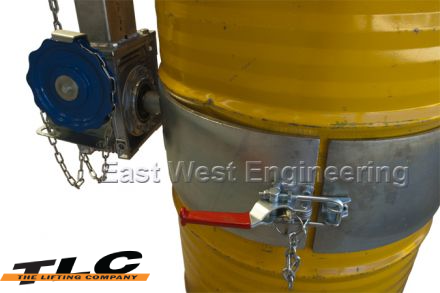

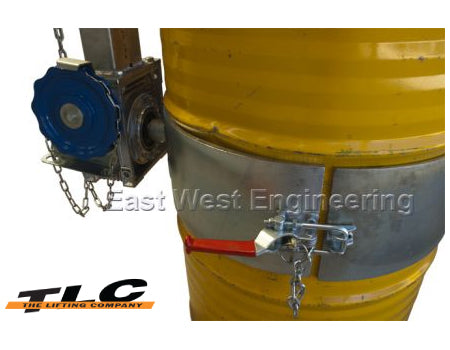

• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking
• Zinc finish
SPECIFICATIONS:
| Working Load Limit (WLL) | 400kg |
| Rotation | 360° |
| Rotation Shaft CL to Lifting Eye | 810mm |
| Unit Weight | 72kg |
| Fork Pocket Size | 160 x 65mm |
| Fork Pocket Centres | 615mm |
