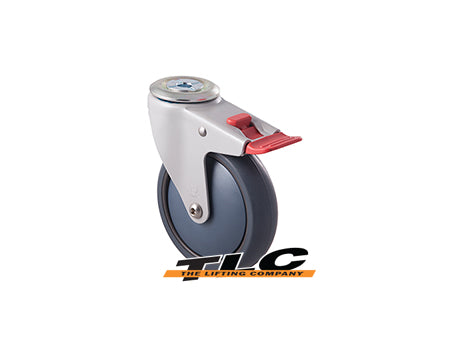

M Powder coat
Able to carry up to 200 kg each, the M Powder coat range of castors are specially designed for corrosive environments and are resistant to alkaline, soaps and other cleaning agents. Castors are available in 125, 150 and 175 mm sizes, and in a wide range of wheel types.
| Load rating: | 85–200 kg |
| Wheels: | White nylon, thermoplastic elastomer, grey rubber, polyurethane |
| Forks: | Powder coated with stainless steel races, in bolt hole, total brake and direction lock configurations |
| Warranty: | One year |
|
Mount dimensions: |
|
Castor options
DNC wheel
Max load: 200 kg
Material: White nylon
Bearing: Stainless steel precision ball bearing
Thread guard: No
| Order code: | DNC125 |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
125 mm castors
Bolt hole
| Order code: | DNC125/MPH |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | DNC125/MPHTB |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | DNC125/MPHDL |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
MNN white wheel
Max load: 150 kg
Material: White nylon
Bearing: Plain bearing
Thread guard: No
| Order code: | MNN125W |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
125 mm castors
Bolt hole
| Order code: | MNN125W/MPH |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MNN125W/MPHTB |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MNN125W/MPHDL |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
MJC wheel
Max load: 85 kg
Material: Thermoplastic elastomer
Bearing: Stainless steel precision ball bearing
Thread guard: Yes
Also available in anti-static, or with plain bearing
| Order code: | MJC125G |
| Diameter: | 125 mm |
| Tread: | 34 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
125 mm castors
Bolt hole
| Order code: | MJC125G/MPH |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJC125G/MPHTB |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MJC125G/MPHDL |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
QTC wheel
Max load: 150 kg
Material: Thermoplastic elastomer
Bearing: Stainless steel precision ball bearing
Thread guard: Yes
| Order code: | QTC150G |
| Diameter: | 150 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
150 mm castors
Bolt hole
| Order code: | QTC150G/MPH |
| Max load: | 150 kg |
| Mount height: | 187 mm |
| Turning radius: | 130 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QTC150G/MPHTB |
| Max load: | 150 kg |
| Mount height: | 187 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QTC150G/MPHDL |
| Max load: | 150 kg |
| Mount height: | 187 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
175 mm castors
Bolt hole
| Order code: | QTC175G/MPH |
| Max load: | 150 kg |
| Mount height: | 214 mm |
| Turning radius: | 145 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QTC175G/MPHTB |
| Max load: | 150 kg |
| Mount height: | 214 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QTC175G/MPHDL |
| Max load: | 150 kg |
| Mount height: | 214 mm |
| Turning radius: | 153 mm |
| Enquiry Now | |
MSC wheel
Max load: 150 kg
Material: Grey rubber
Bearing: Deep groove ball bearing
Thread guard: Yes
| Order code: | MSC125G |
| Diameter: | 125 mm |
| Tread: | 34 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
125 mm castors
Bolt hole
| Order code: | MSC125G/MPH |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MSC125G/MPHTB |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MSC125G/MPHDL |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
QUC wheel
Max load: 200 kg
Material: Polyurethane tyre on polypropylene centre
Bearing: Stainless steel precision ball bearing
Thread guard: Yes
| Order code: | QUC125G |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
125 mm castors
Bolt hole
| Order code: | QUC125G/MPH |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QUC125G/MPHTB |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QUC125G/MPHDL |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
