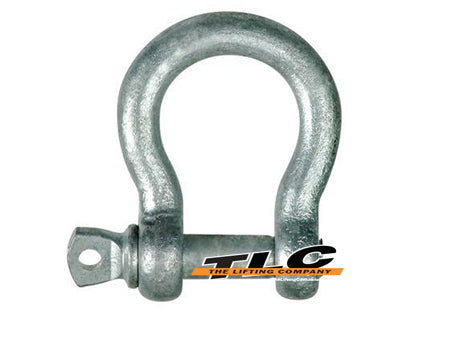

Shackle Commercial Bow Galvanised
Commercial grade large bow shackles have been used in domestic, mining and any other industrial applications.
• Shaped in a bow pattern, they come with screw pin, made from mild steel
material and hot dipped galvanised.
• NOT FOR LIFTING APPLICATIONS. NOT RATED.
 |
||||||
| SIZE(mm) | Wt.(kg) | DIMENSIONS (mm) | ||||
| B | C | D | D1 | R | ||
| 5 | 0.0143 | 10 | 19.5 | 5 | 5 | 15 |
| 6 | 0.026 | 12 | 24 | 6 | 6 | 18 |
| 8 | 0.054 | 16 | 32 | 8 | 8 | 24 |
| 10 | 0,118 | 20 | 40 | 10 | 10 | 30 |
| 12 | 0.225 | 25 | 49 | 12 | 12 | 36 |
| 16 | 0.51 | 32 | 64 | 16 | 16 | 48 |
| 20 | 0.86 | 38 | 80 | 19 | 20 | 60 |
| 22 | 1.35 | 44 | 85 | 22 | 22 | 66 |
| 25 | 2.05 | 50 | 100 | 25 | 24 | 75 |
