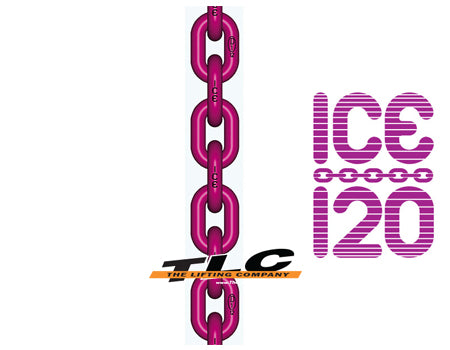

ICE 120 Chain
ICE 120 Chain offers a higher level of performance in notch impact strength, breaking strain and fatigue strength – all at a full chain diameter smaller than Grade 80 equivalents.
- 60% increase in WLL means that the same load can now be lifted by a chain one full diameter size smaller
- Chain sizes from 6 mm to 16 mm
- 30% increase in surface hardness
- 30% lighter chain

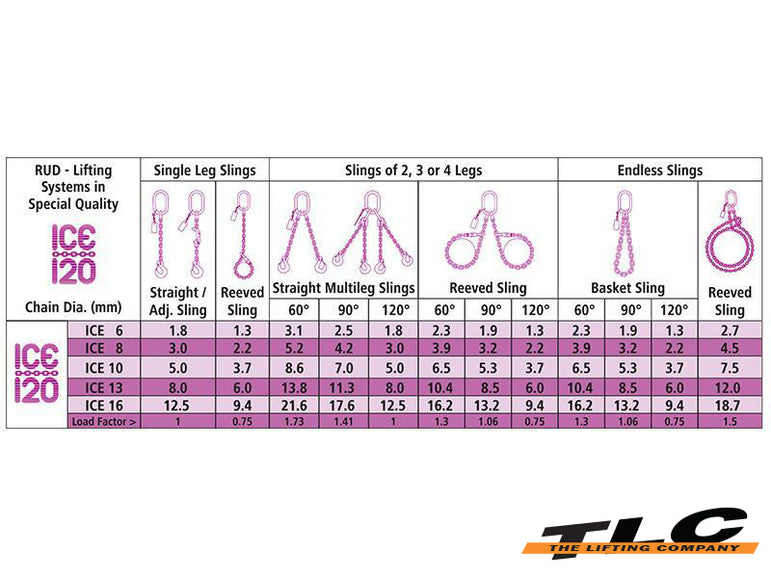

RUD-Lifting Systems in Special Quality  Chain Dia. (mm) |
Single Leg Slings | Slings of 2,3 or 4 Legs | Endless Slings | ||||||||||||
 Straight /Adj. Sling |
 Reeved Sling |
 Straight Multileg Slings |
 Reeved Sling |
 Basket Sling |
 Reeved Sling |
||||||||||
| 60° | 90° | 120° | 60° | 90° | 120° | 60° | 90° | 120° | |||||||
|
|||||||||||||||
| ICE 6 | 1.8 | 1.3 | 3.1 | 2.5 | 1.8 | 2.3 | 1.9 | 1.3 | 2.3 | 1.9 | 1.3 | 2.7 | |||
| ICE 8 | 3.0 | 2.2 | 5.2 | 4.2 | 3.0 | 3.9 | 3.2 | 2.2 | 3.9 | 3.2 | 2.2 | 4.5 | |||
| ICE 10 | 5.0 | 3.7 | 8.6 | 7.0 | 5.0 | 6.5 | 5.3 | 3.7 | 6.5 | 5.3 | 3.7 | 7.5 | |||
| ICE 13 | 8.0 | 6.0 | 13.8 | 11.3 | 8.0 | 10.4 | 8.5 | 6.0 | 10.4 | 8.5 | 6.0 | 12.0 | |||
| ICE 16 | 12.5 | 9.4 | 21.6 | 17.6 | 12.5 | 16.2 | 13.2 | 9.4 | 16.2 | 13.2 | 9.4 | 18.7 | |||
| Load Factor> | 1 | 0.75 | 1.73 | 1.41 | 1 | 1.3 | 1.06 | 0.75 | 1.3 | 1.06 | 0.75 | 1.5 | |||
