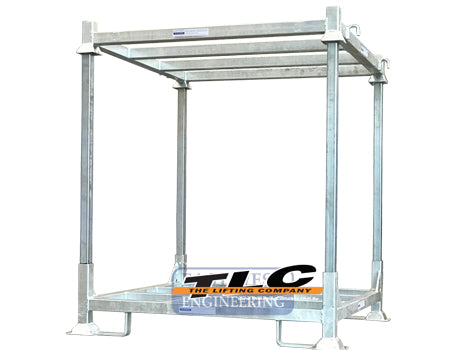

SKX100 Bulk Bag Frame
The SKX100 Bulk Bag Frame is designed to hold open a bulk bag or when combined with the optional SKH100 Bulk Bag Hopper, it can be used as a bulk bag filling or dispensing station.
FEATURES:

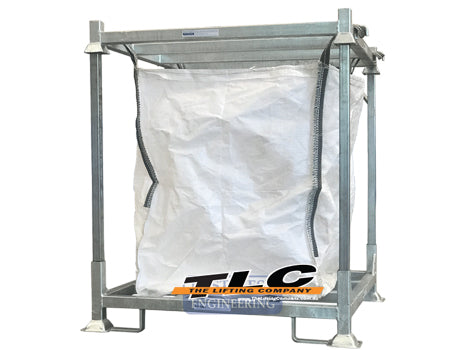

• Allows bulk bags to be held wide open for ease in filling
• Bag restraining hooks allow the bag to be quickly positioned
• Metal base frame keeps bulk bag off the ground, protecting it from damage and other hazards

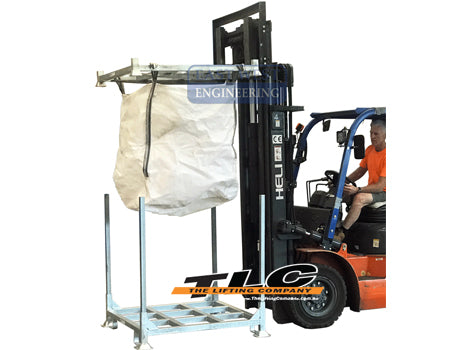

• Fork stirrups fitted for transport by forklift
• Stacks 3 high when empty and 2 high when fully loaded

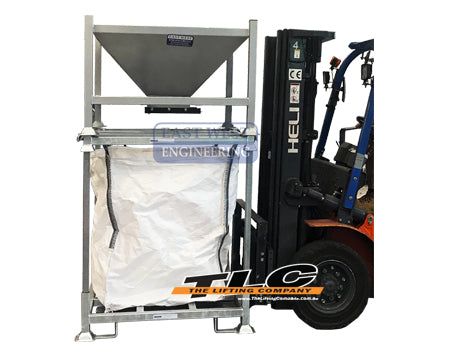

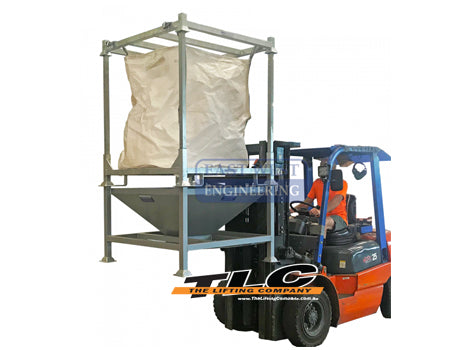

• Optional Bulk Bag Hopper (SKH100) with slide valve (also available in stainless steel), allows dispensing or filling
• Custom leg lengths available on request for different bag types
• Zinc finish
Supplied standard as ‘flatpack’ for on-site assembly.
| Working Load Limit (WLL) | 1500kg |
| Dimensions | 1372 x 1250mm |
| Adjustable Height Settings | 8 |
| Unit Height | 1270 – 1970mm |
| Unit Weight | 175kg |
| Fork Pocket Size | 190 x 90mm |
| Fork Pocket Centres | 600mm |
