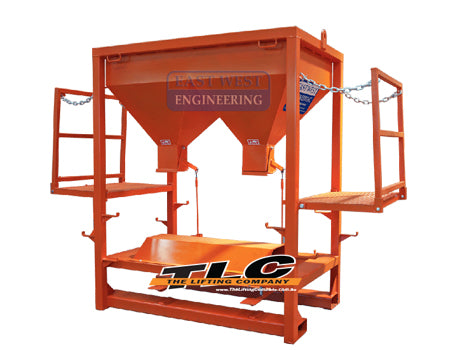

BSB02-RS Sand Bag Filling Frame

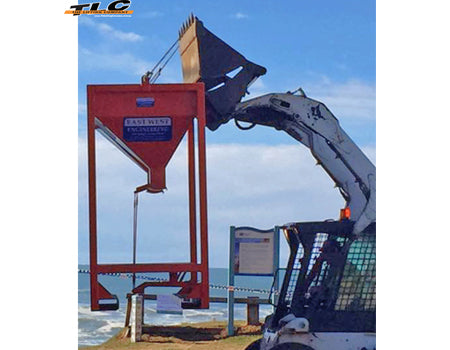

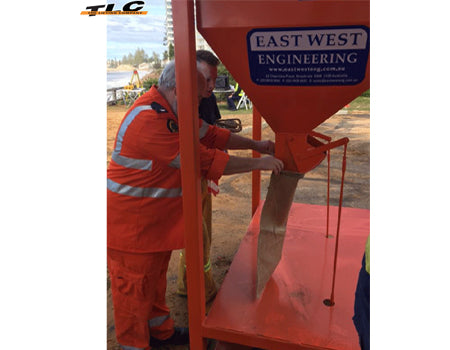

The gravity fed, foot operated BSB02-RS Sand Bag Filling Frame is designed to increase efficiency while reducing the risk of injuries normally associated with bag filling. Ideal for builders, landscapers, councils, emergency services and civil work contractors. Highly efficient, this unit enables the filling of a 20kg bag approximately every 6-8 seconds.
FEATURES:
• Designed for fast, safe and efficient dispensing of sand, gravel, and other loose material
• Simple to operate and requires no power source to function
• Comes complete with foldable side platforms for safe access and loading

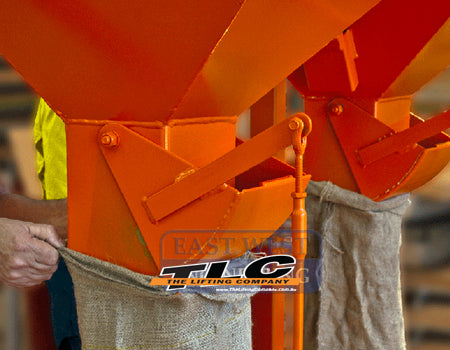

• Dual outlets allow single or two operators to work simultaneously increasing efficiency
• Fitted with fork pockets and crane lugs for easy transport around the worksite
| Working Load Limit (WLL) | 1800kg |
| Capacity | 0.85 cu.m |
| Dimensions (excl. side platforms) | 2100 x 1150 x 2290mm |
| Dimensions (incl side platforms) | 2950 x 1150 x 2290mm |
| Unit Weight | 592kg |
| Fork Pocket Size | 185 x 85mm |
| Fork Pocket Centres | 800mm |
