BBF Crane Lifting Bulk Bag Jib
BBF Crane Lifting Bulk Bag Jib
| Product | Code |
|---|---|
| Bulk Bag Jib – SWL 2T | BBFC4 |

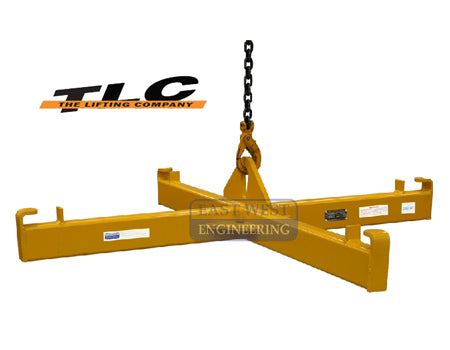

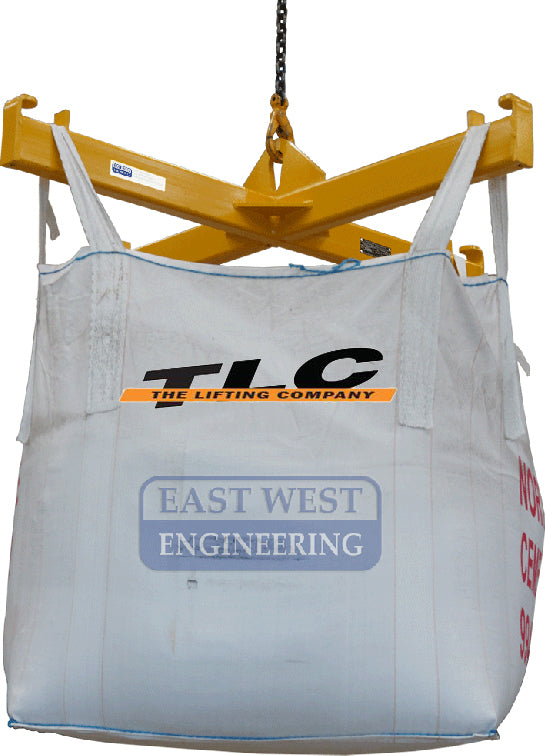

The type BBFC4 Bulk Bag Lifters are suitable for lifting Bulk Bags designed with lifting loops by overhead crane.
Two models are available. The standard BBFC4 model caters for Bags 100cm square nominal. The smaller BBF4-700 model caters for Bags 70cm square nominal.
SPECIFICATIONS:
• Safe Working Load 2000kg
• BBF4 Unit Weight 55kg
• BBF4-700 Unit Weight 45kg
• Hook Centres – refer Table below
|

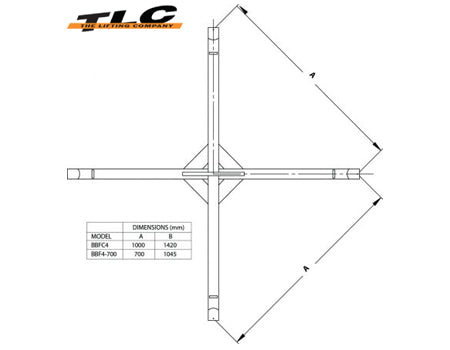

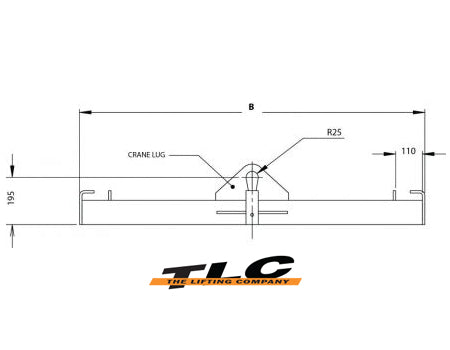

Dimensions (mm) |
||
| Model |
A |
B |
| BBFC4 |
1000 |
1420 |
| BBF4-700 |
700 |
1045 |
