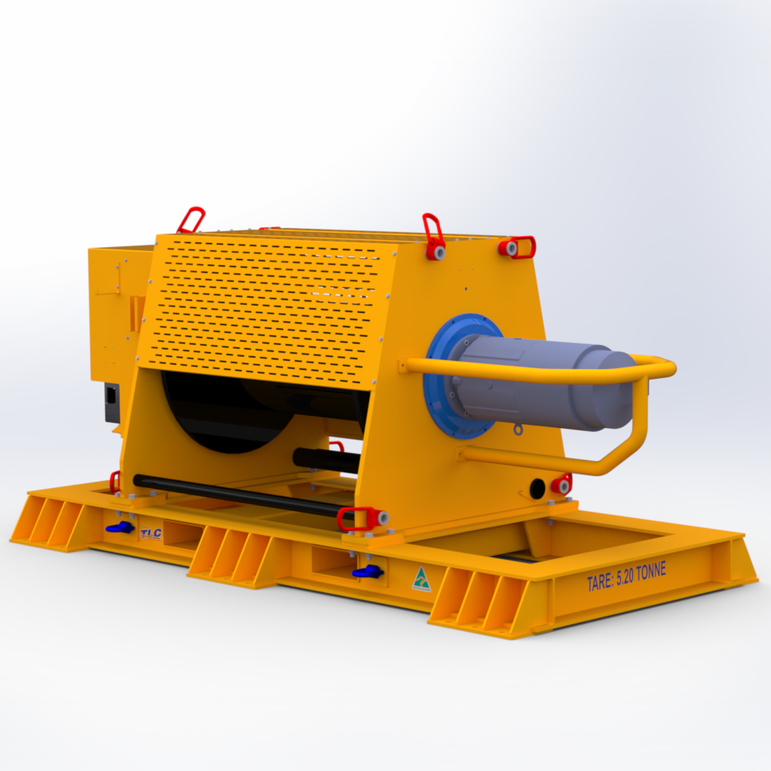

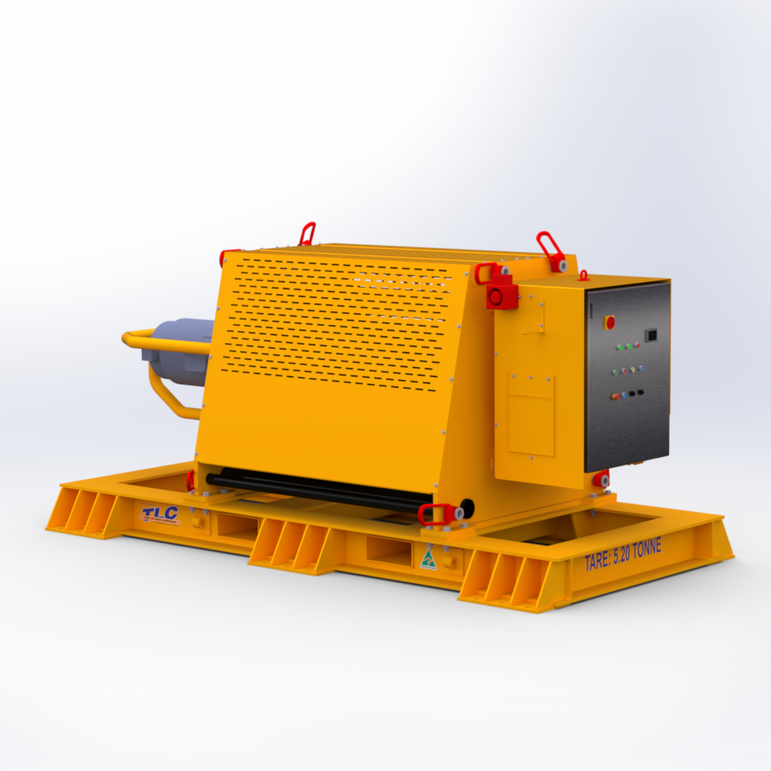

25T Ground Winch

25T Ground Winch

25T Ground Winch

25T Ground Winch

No review yet. Write Review

$0.00

Description

Request SWI

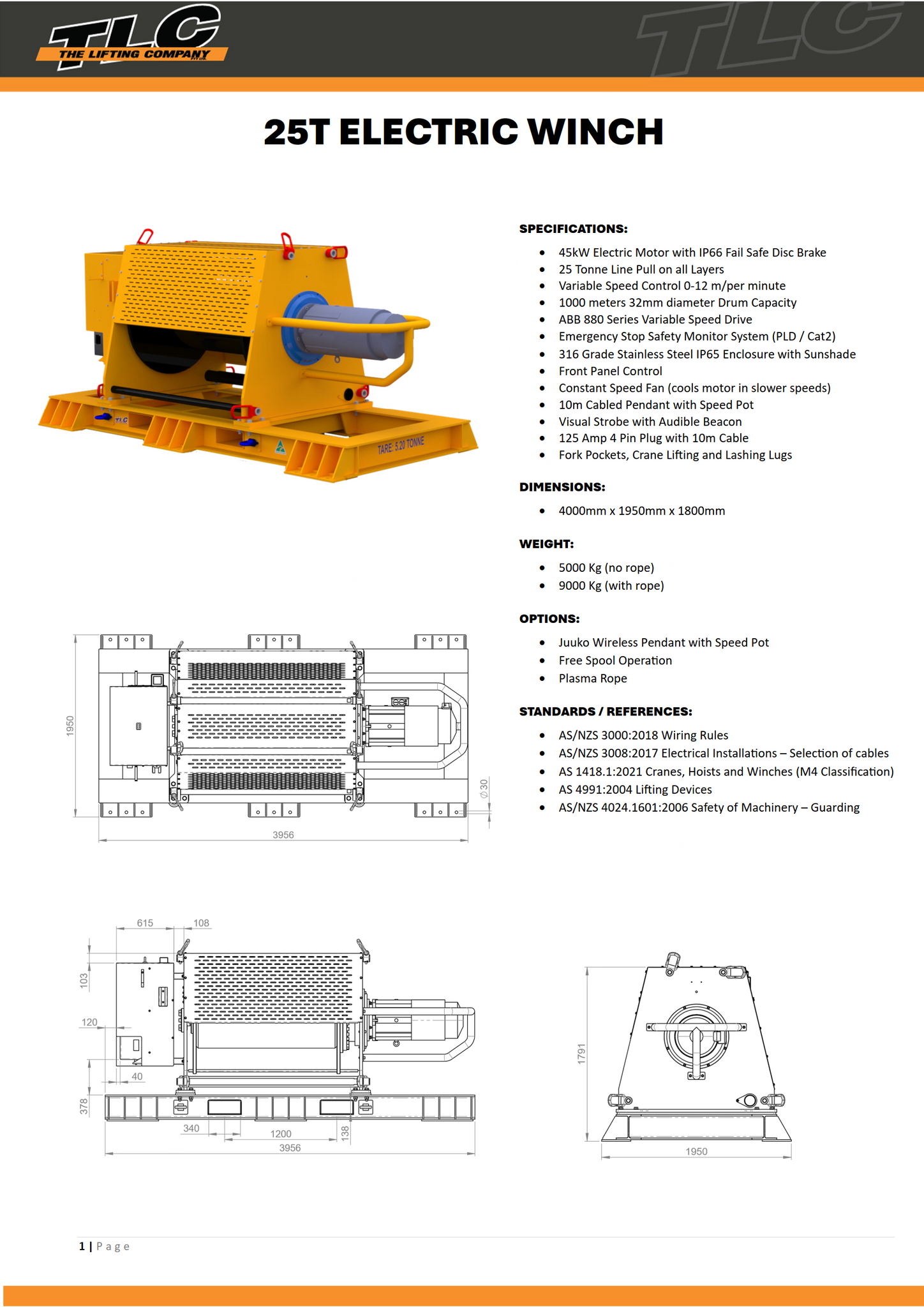

SPECIFICATIONS:

45kW Electric Motor with IP66 Fail Safe Disc Brake
25 Tonne Line Pull on all Layers
Variable Speed Control 0-12 m/per minute
1000 meters 32mm diameter Drum Capacity
ABB 880 Series Variable Speed Drive
Emergency Stop Safety Monitor System (PLD / Cat2)
316 Grade Stainless Steel IP65 Enclosure with Sunshade
Front Panel Control
Constant Speed Fan (cools motor in slower speeds)
10m Cabled Pendant with Speed Pot
Visual Strobe with Audible Beacon
125 Amp 4 Pin Plug with 10m Cable
Fork Pockets, Crane Lifting and Lashing Lugs

DIMENSIONS:

4000mm x 1950mm x 1800mm

WEIGHT:

5000 KG (no rope)
9000 KG (with rope)

OPTIONS:

Juuko Wireless Pendant with Speed Pot
Free Spool Operation
Plasma Rope

STANDARDS / REFERENCES:

AS/NZS 3000:2018 Wiring Rules
AS/NZS 3008:2017 Electrical Installations – Selection of cables
AS 1418.1:2021 Cranes, Hoists and Winches (M4 Classification)
AS 4991:2004 Lifting Devices
AS/NZS 4024.1601:2006 Safety of Machinery – Guarding

TLC 00480
