12T M.R.C. Belt Winder

No review yet. Write Review

$0.00

Description

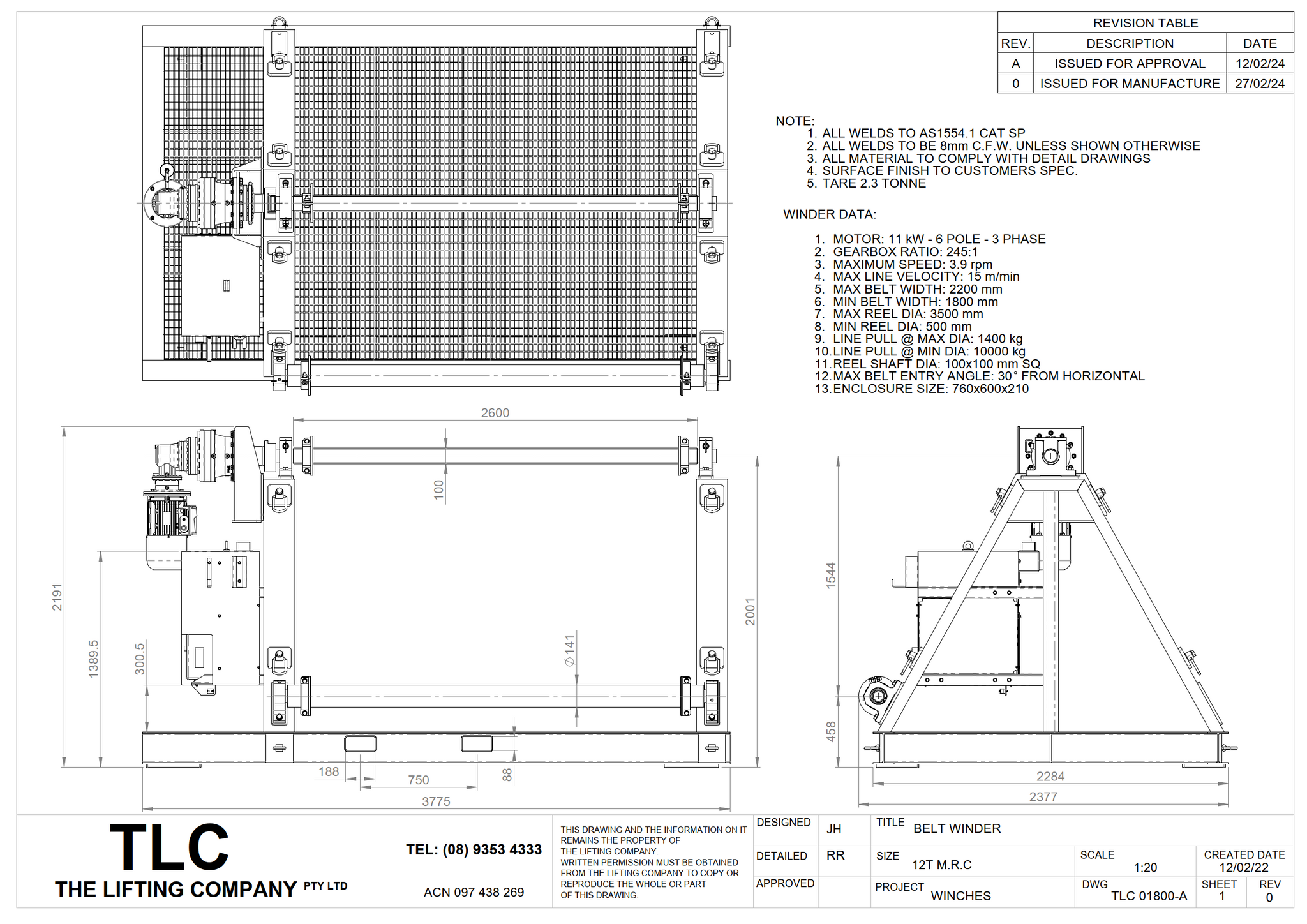

Belt Winder
Capacity - 12T M.R.C.
Tare - 2.3T
Min Belt Width - 1800 mm
Max Belt Width - 2200 mm
Max Line Pull At Max Diameter - 1400 kg
Max Line Pull At Min Diameter - 10000 kg
Max Line Speed - 15 m/min
Max RPM - 3.9 rpm
Gearbox Ratio - 245:1
TLC 01800

Back to Belting And Conveyor Equipment
