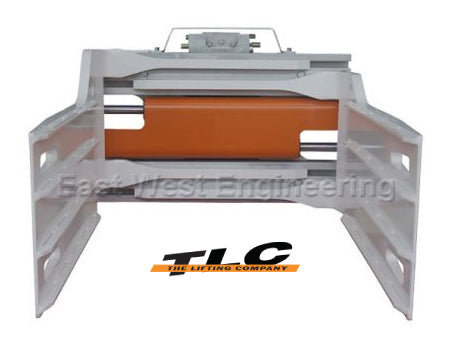

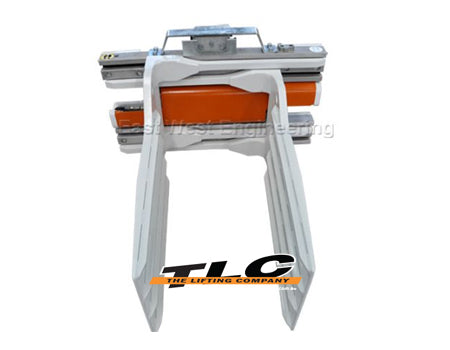

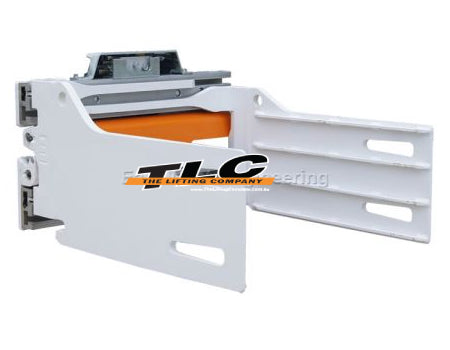

Standard Hydraulic Bale Clamps
| Product | Code |
|---|---|
| Bale Clamp Class 2 | RBC19D-B002 |
| Bale Clamp Class 3 | RBC22D-C004 |
| Bale Clamp Class 3 | RBC27D-C004 |
Standard Hydraulic Bale Clamps. East West Engineering’s range of Bale Clamps enable forklift operator to clamp unpaletised loads. The Bale Clamp’s opening range can be designed to suit multiple load sizes.
East West Engineering can supply all sizes and capacities upon request.
|
Model |
Capacity@Load Centre |
Mounting |
Opening |
Arm |
Arm |
Frame |
Arm |
Weight |
Lost |
Horizontal |
|
(kg@mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
| RBC19D-B002 | 1900@500 |
II |
440-1730 |
415 |
1185 |
1040 |
80 |
430 |
128 |
401 |
| RBC22D-C004 | 2200@500 |
II or III |
490-2330 |
460 |
750 |
1600 |
75 |
610 |
146 |
180 |
| RBC27D-C004 | 2700@500 |
III |
590-2110 |
460 |
1181 |
1200 |
80 |
620 |
150 |
356 |
