The Arc range of castors are designed with crisp, clean finishes ideally suited to modern, contemporary furniture.
Arc Castors are based on our K Series and M Series ranges, but with decorative finishes, powder coated in Anodic natural matt, with grey pedals and seals, and Chicago screw axles. Wheels come in four colourways—graphite, silver, white and clear, all with pearlescent pigment in the thread guards for that sophisticated high lustre look.

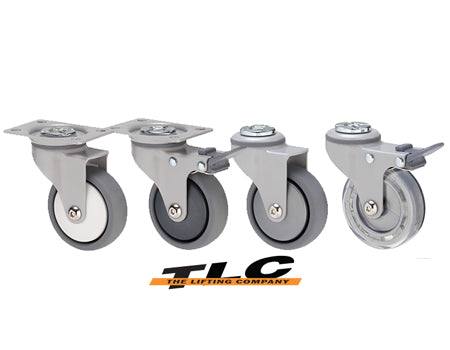

The 75 mm K Series castors shown below are stocked and available for next day delivery. The K Series version can also be made to order in 65 mm and 100 mm sizes subject to a minimum order quantity of 200 pieces.
| Load rating: | 85 kg |
| Wheels: | Thermoplastic elastomer |
| Forks: | Powder coated in an anodic natural matt finish, in swivel plate, bolt hole and total brake configurations |
| Warranty: | Three years |
| Mount dimensions: | |
Castor options
KJQ wheel
Max load: 50 kg
Material: Thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
Graphite colourway
| Order code: | KJQ75GGH |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Silver colourway
| Order code: | KJQ75GSL |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
White colourway
| Order code: | KJQ75GWT |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Graphite castors
Swivel plate
| Order code: | KJQ75G/KPPGH |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ75G/KPPTBGH |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ75G/KPHGH |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ75G/KPHTBGH |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Silver castors
Swivel plate
| Order code: | KJQ75G/KPPSL |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ75G/KPPTBSL |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ75G/KPHSL |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ75G/KPHTBSL |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
White castors
Swivel plate
| Order code: | KJQ75G/KPPWT |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ75G/KPPTBWT |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ75G/KPHWT |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ75G/KPHTBWT |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Clear grey castors
KVP wheel
Max load: 45 kg
Material: Transparent grey PVC
Bearing: Plain bearing
Thread guard: No
Grey colourway
| Order code: | KVP75GY |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | KVP75/KPPGY |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KVP75/KPPTBGY |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Bolt hole
| Order code: | KVP75/KPHGY |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KVP75/KPHTBGY |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
