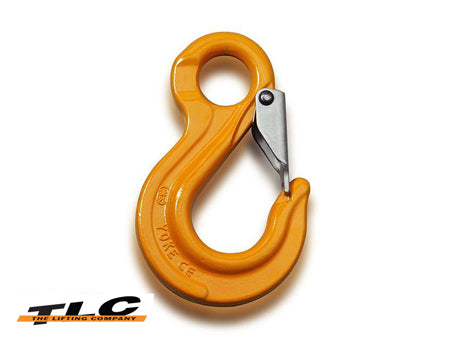

Safety Hook (Eye type)

No review yet. Write Review

$0.00

Description

Safety hook are popular for their quick and easy spring loaded safety latch. Most commonly used on chain and wire rope lifting slings, tow trucks and winches.

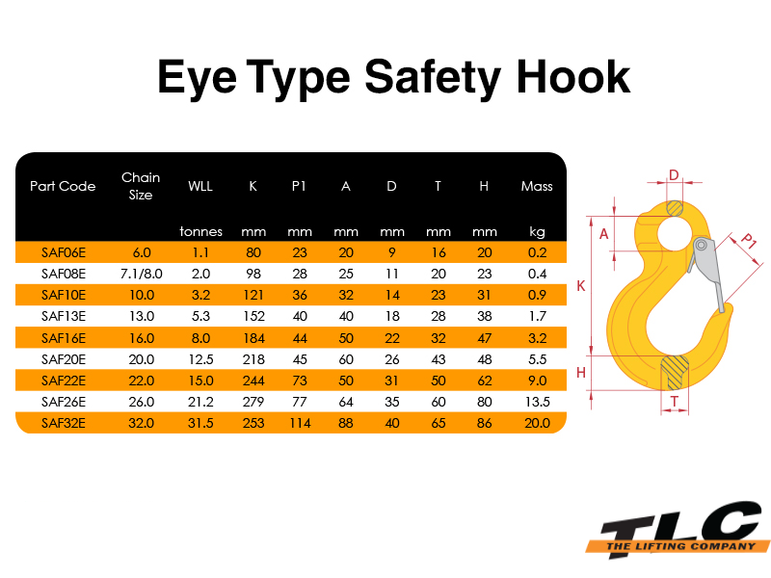

Eye Type Safety Hook
Part Code	Chain Size	WLL	K	P1	A	D	T	H	Mass
		tonnes	mm	mm	mm	mm	mm	mm	kg
SAF06E	6	1.1	80	23	20	9	16	20	0.2
SAF08E	7.1/8	2	98	28	25	11	20	23	0.4
SAF10E	10	3.2	121	36	32	14	23	31	0.9
SAF13E	13	5.3	152	40	40	18	28	38	1.7
SAF16E	16	8	184	44	50	22	32	47	3.2
SAF20E	20	12.5	218	45	60	26	43	48	5.5
SAF22E	22	15	244	73	50	31	50	62	9
SAF26E	26	21.2	279	77	64	35	60	80	13.5
SAF32E	32	31.5	253	114	88	40	65	86	20

Back to Alloy Fittings
