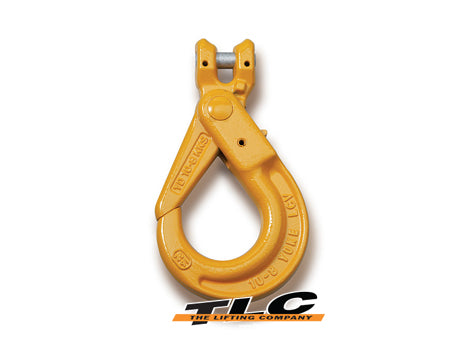

Latchlok Hook (Pinlok – Self-Locking)

No review yet. Write Review

$0.00

Description

LatchLok Hook utilise a trigger release in the back of the hook to lock the hook in it's closed position.

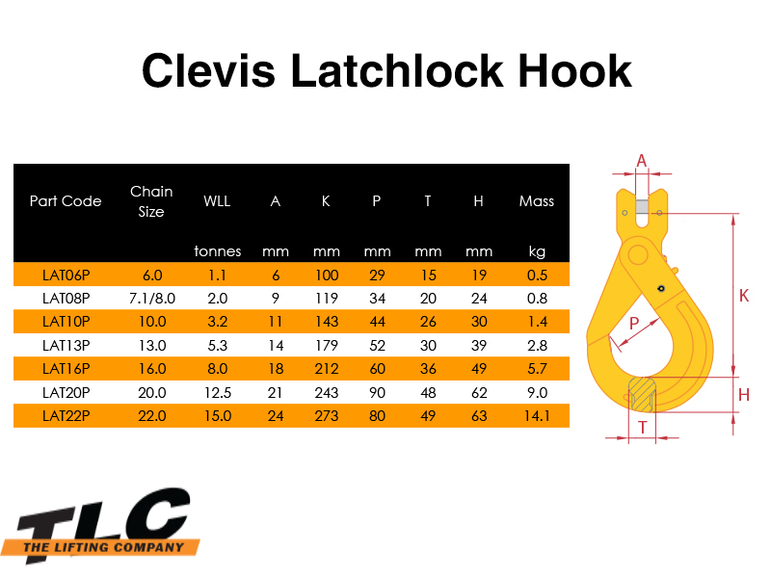

Clevis Latchlock Hook
Part Code	Chain Size	WLL	A	K	P	T	H	Mass
		tonnes	mm	mm	mm	mm	mm	kg
LAT06P	6	1.1	6	100	29	15	19	0.5
LAT08P	7.1/8	2	9	119	34	20	24	0.8
LAT10P	10	3.2	11	143	44	26	30	1.4
LAT13P	13	5.3	14	179	52	30	39	2.8
LAT16P	16	8	18	212	60	36	49	5.7
LAT20P	20	12.5	21	243	90	48	62	9
LAT22P	22	15	24	273	80	49	63	14.1

Back to Alloy Fittings
