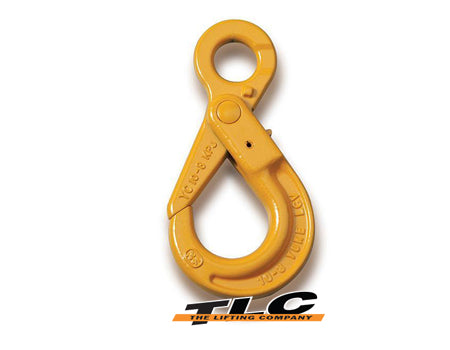

Latchlok Hook (Eye type)

No review yet. Write Review

$0.00

Description

LatchLok Hook utilise a trigger release in the back of the hook to lock the hook in its closed position.

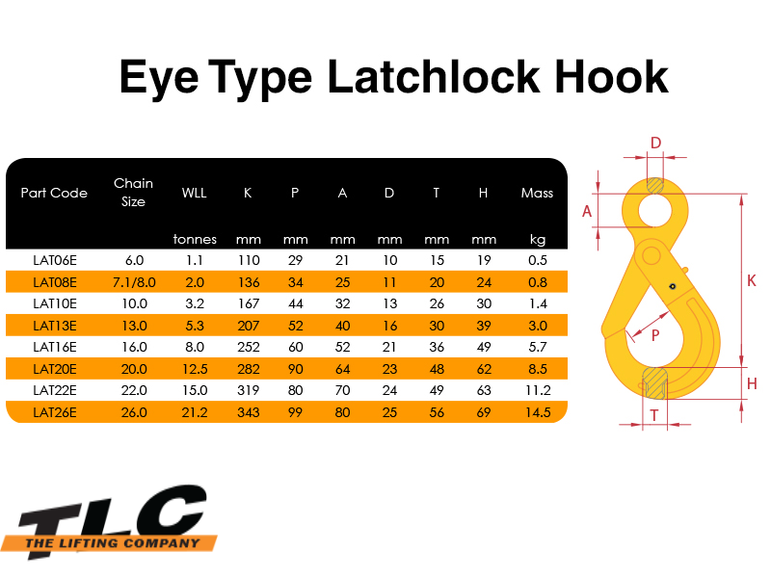

Eye Type Latchlock Hook
Part Code	Chain Size	WLL	K	P	A	D	T	H	Mass
		tonnes	mm	mm	mm	mm	mm	mm	kg
LAT06E	6	1.1	110	29	21	10	15	19	0.5
LAT08E	7.1/8	2	136	34	25	11	20	24	0.8
LAT10E	10	3.2	167	44	32	13	26	30	1.4
LAT13E	13	5.3	207	52	40	16	30	39	3
LAT16E	16	8	252	60	52	21	36	49	5.7
LAT20E	20	12.5	282	90	64	23	48	62	8.5
LAT22E	22	15	319	80	70	24	49	63	11.2
LAT26E	26	21.2	343	99	80	25	56	69	14.5

Back to Alloy Fittings
