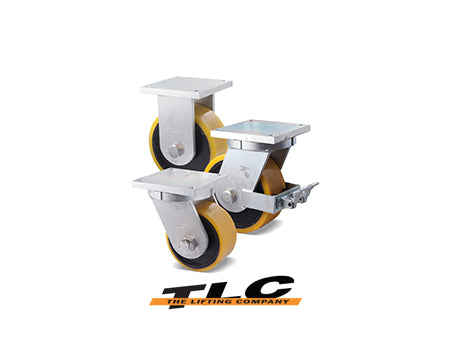

A Series
The very heavy duty A Series castor range is capable of carrying up to 3500 kg and available with polyurethane on cast iron, in a 200 and 250 mm.
| Load rating: | 3000–3500 kg |
| Wheels: | Polyurethane on cast iron |
| Forks: | Zinc plated Core Coat™ in swivel plate, fixed plate, wheel brake and direction lock configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
AUQ wheel
Max load: 3000 kg
Material: Polyurethane on cast iron
Bearing: Precision ball bearing
Thread guard: No
| Order code: | AUQ200 |
| Diameter: | 200 mm |
| Tread: | 102 mm |
| Hub: | 109 mm |
| Bore: | 30 mm |
| Enquiry Now | |
| Order code: | AUQ250 |
| Diameter: | 250 mm |
| Tread: | 102 mm |
| Hub: | 109 mm |
| Bore: | 30 mm |
| Enquiry Now | |
200 mm castors
Swivel plate
| Order code: | AUQ200/AZP |
| Max load: | 3000 kg |
| Mount height: | 279 mm |
| Turning radius: | 172 mm |
| Enquiry Now | |
Swivel plate and wheel brake
| Order code: | AUQ200/AZPBR |
| Max load: | 3000 kg |
| Mount height: | 279 mm |
| Turning radius: | 317 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | AUQ200/AZPDL |
| Max load: | 3000 kg |
| Mount height: | 279 mm |
| Turning radius: | 172 mm |
| Enquiry Now | |
Fixed plate
| Order code: | AUQ200/AZF |
| Max load: | 3000 kg |
| Mount height: | 279 mm |
| Turning radius: | n/a |
| Enquiry Now | |
250 mm castors
Swivel plate
| Order code: | AUQ250/AZP |
| Max load: | 3500 kg |
| Mount height: | 330 mm |
| Turning radius: | 197 mm |
| Enquiry Now | |
Swivel plate and wheel brake
| Order code: | AUQ250/AZPBR |
| Max load: | 3500 kg |
| Mount height: | 330 mm |
| Turning radius: | 353 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | AUQ250/AZPDL |
| Max load: | 3500 kg |
| Mount height: | 330 mm |
| Turning radius: | 197 mm |
| Enquiry Now | |
Fixed plate
| Order code: | AUQ250/AZF |
| Max load: | 3500 kg |
| Mount height: | 330 mm |
| Turning radius: | n/a |
| Enquiry Now | |
