CEM2439 Spreader Beam (Medium)

CEM2439 Spreader Beam (Medium)

No review yet. Write Review
Regular price $0.00
InStock SOLD OUT

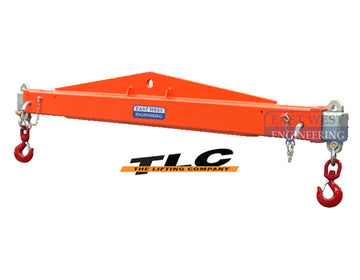

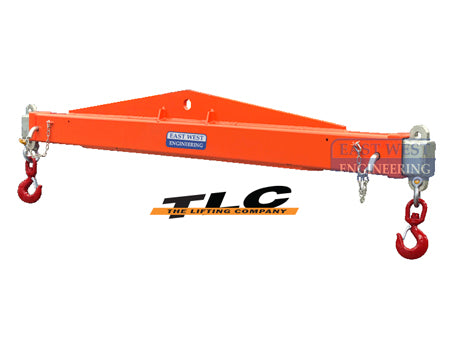

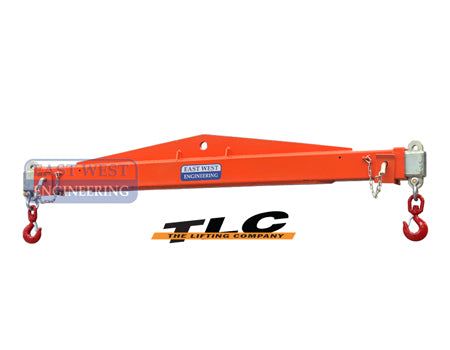

The CEM2439 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’ with a truck mounted or overhead crane.

FEATURES:
• Multi-tasking spreader beam
• Used as a ‘Lifting Beam’ by using the centre hook point
• Used as a ‘Spreader Beam’ when using the end hooks with a 2 leg chain sling

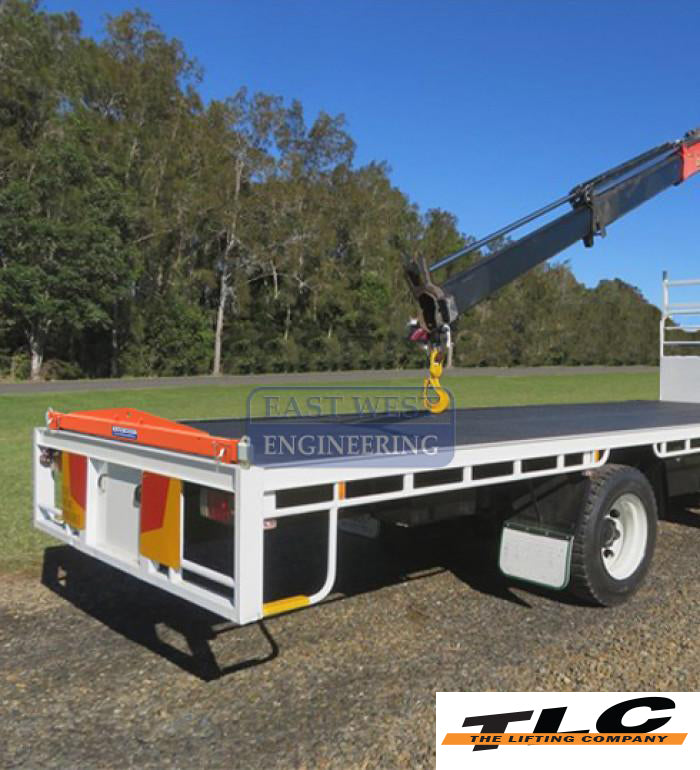

• Retaining saddle brackets supplied for storage on truck trays
• Load connection points are adjustable to 3 positions

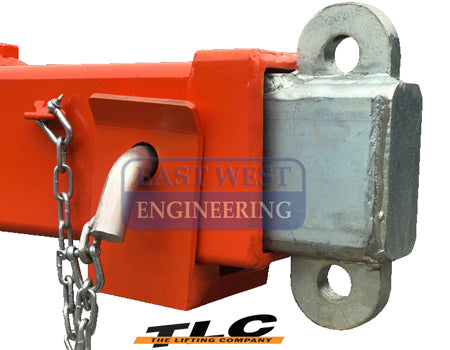

• Safety pins used to securely lock extendable arm in position
• Fitted with 2 safety swivel hooks
• Third party certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body


 Model  Rated Capacity (RC) Unit
Weight
(kg)
 when used as Fully Retracted
(LC@2380mm)
Middle Position
(LC@3140mm)
Fully Extended
(LC@3900mm)
 Length 2500mm 3260mm 4020mm
 CEM2439  Lifting Beam 6000kg 4500kg 2400kg 218
 Spreader Beam 10,000kg 10,000kg 10,000kg
