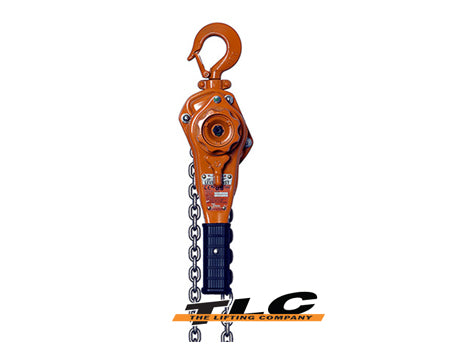

L5 Series KITO Lever Hoists
L5 Series KITO Lever Hoists.
The PWB Anchor L5 Series lever hoist from KITO Japan offers one of the largest range of capacities on the market.
Lightweight, compact and designed for heavy-duty work in the most rigorous and demanding applications. All models feature the patented ‘free-wheel safety brake mechanism’ and nickel plated load chain.
Supplied in standard lift heights of 1.5mtr and selected 3mtr models, with optional lift heights also available.
Also available with Overload Limiter. Speak to one of our TLC reps today for more info.
 |

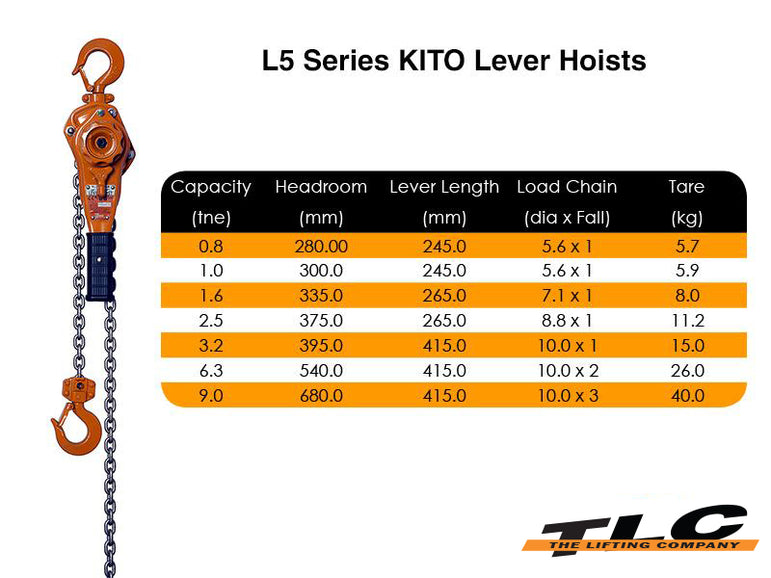

L5 Series KITO Lever Hoists | ||||
| Capacity | Headroom | Lever Length | Load Chain | Tare | |
| (tne) | (mm) | (mm) | (dia x Fall) | (kg) | |
| 0.8 | 280 | 245 | 5.6 x 1 | 5.7 | |
| 1 | 300 | 245 | 5.6 x 1 | 5.9 | |
| 1.6 | 335 | 265 | 7.1 x 1 | 8 | |
| 2.5 | 375 | 265 | 8.8 x 1 | 11.2 | |
| 3.2 | 395 | 415 | 10 x 1 | 15 | |
| 6.3 | 540 | 415 | 10 x 2 | 26 | |
| 9 | 680 | 415 | 10 x 3 | 40 | |
