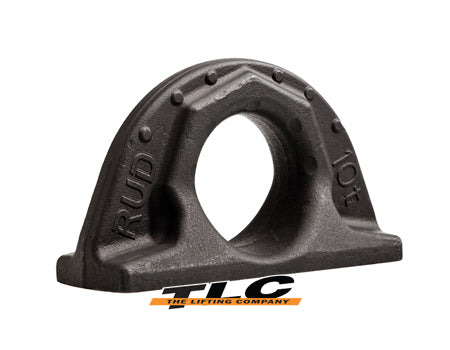

The new ABA weld-on lifting points from RUD is the safer alternative which enables the user to take the guess work out of lifting safely.
- Manufactured in Germany using high tensile CrNiMo – steel 100% Electro-magnetic crack detection tested.
- Complies with EN 1677
- Offers a full WLL in any direction with 4:1 design factor
- Temperature Range -40oC to 200oC no reduction in WLL
- Full working load in all directions
- Patented wear markings on the inside and on the outside
W-ABA 0.8t - Lifting Point for Welding (7907698)
| Attribute |
Value |
Value |
| weight |
0.20 kg |
0.44 lbs |
| Nominal WLL |
800 kg |
1760 lbs |
| A |
22 mm |
7/8" |
| B |
12 mm |
15/32" |
| T |
38 mm |
1-2/2" |
| C |
70 mm |
2-3/4" |
| D |
32 mm |
1-1/4" |
| E |
12 mm |
15/32" |
| F |
50 mm |
1-31/32" |
W-ABA 1.6t - Lifting Point for Welding (7900352)
| Attribute |
Value |
Value |
| weight |
0.45 kg |
0.99 lbs |
| Nominal WLL |
1600 kg |
3520 lbs |
| A |
30 mm |
1-3/16" |
| B |
16 mm |
5/8" |
| T |
42 mm |
1-21/32" |
| C |
100 mm |
3-5/16" |
| D |
35 mm |
1-3/8" |
| E |
16 mm |
5/8" |
| F |
57 mm |
2-1/4" |
W-ABA 3.2t - Lifting Point for Welding (7900353)
| Attribute |
Value |
Value |
| weight |
1.15 kg |
2.54 lbs |
| Nominal WLL |
3200 kg |
7050 lbs |
| A |
41 mm |
1-5/8" |
| B |
23 mm |
29/32" |
| T |
59 mm |
2-15/16" |
| C |
137 mm |
5-3/8" |
| D |
50 mm |
1-31/32" |
| E |
21 mm |
13/16" |
| F |
80 mm |
3-1/8" |
W-ABA 5t - Lifting Point for Welding (7900354)
| Attribute |
Value |
Value |
| weight |
2.26 kg |
4.98 lbs |
| Nominal WLL |
5000 kg |
11000 lbs |
| A |
51 mm |
2" |
| B |
27 mm |
1-1/16" |
| T |
72 mm |
2-27/32" |
| C |
172 mm |
6-25/32" |
| D |
60 mm |
2-3/8" |
| E |
28 mm |
1-1/8" |
| F |
99 mm |
3-7/8" |
W-ABA 10t - Lifting Point for Welding (7900355)
| Attribute |
Value |
Value |
| weight |
5.37 kg |
11.84 lbs |
| Nominal WLL |
10000 kg |
22000 lbs |
| A |
70 mm |
2-3/4" |
| B |
38 mm |
1-1/2" |
| T |
95 mm |
3-3/4" |
| C |
228 mm |
9" |
| D |
80 mm |
3-1/8" |
| E |
35 mm |
1-3/8" |
| F |
130 mm |
5-1/8" |
W-ABA 20t - Lifting Point for Welding (7902174)
| Attribute |
Value |
Value |
| weight |
10.72 kg |
23.63 lbs |
| Nominal WLL |
20000 kg |
44000 lbs |
| A |
90 mm |
3-17/32" |
| B |
52 mm |
2-1/16" |
| T |
135 mm |
5-5/16" |
| C |
272 mm |
10-11/16" |
| D |
115 mm |
4-1/2" |
| E |
40 mm |
1-9/16" |
| F |
175 mm |
6-7/8" |
W-ABA 31.5t - Lifting Point for Welding (7902175)
| Attribute |
Value |
Value |
| weight |
18.33 kg |
40.41 lbs |
| Nominal WLL |
31500 kg |
69300 lbs |
| A |
108 mm |
4-1/4" |
| B |
64 mm |
2-1/2" |
| T |
154 mm |
6-1/16" |
| C |
320 mm |
12-19/32" |
| D |
130 mm |
5-1/8" |
| E |
50 mm |
1-31/32" |
| F |
204 mm |
8-1/32" |
