WFH Tipping Bins Self Dumping
| Product | Code |
|---|---|
| 0.35 cbm Bin | WFH5X74 |
| 0.35 cbm Bin + Lid | WFH5X74L |
| 0.68 cbm Bin | WFH9X74 |
| 0.68 cbm + Lid | WFH9X74L |
| 0.59 cbm Bin | WFH5X11 |
| 0.59 cbm Bin + Lid | WFH5X11L |
| 1.1 cbm Bin | WFH9X11 |
| 1.1 cbm Bin + Lid | WFH9X11L |
| 2.1 cbm Bin | WFH9X20 |
| 2.1 cbm Bin + Lid | WFH9X20L |

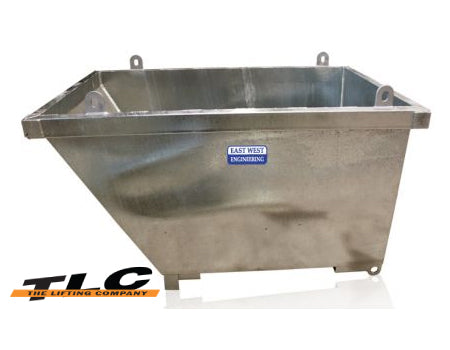

The WFH Self Dumping Bins has been designed to provide an economical solution to collecting and disposing of industrial waste and other uses.

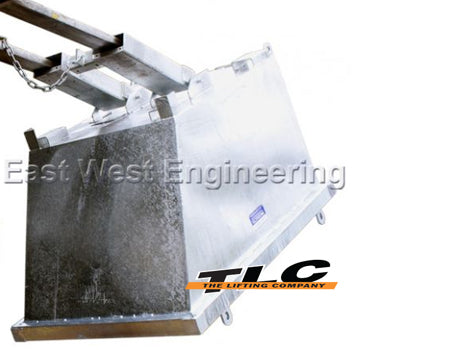

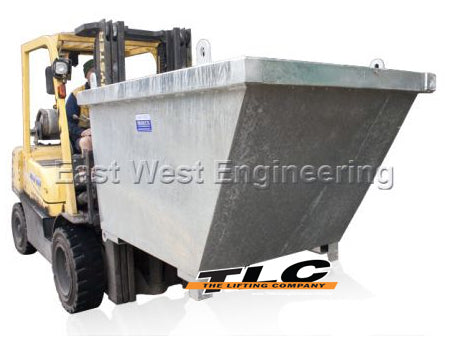

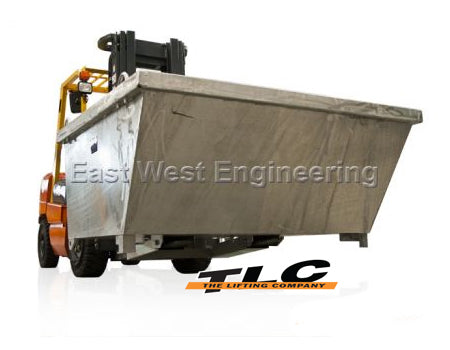

The bins feature a low profile allowing versatility in confined spaces. When transporting the bin to the discharge point the forklift tines are positioned fully under the bin allowing maximum lift capacity. To empty the operator catches the bin on the edge of the bulk container and reverses the forklift. When the tines clear the pivot point of the bin, raising the forks will permit a complete discharge of the contents.
FEATURES:
• Suitable for use with forklift or overhead crane

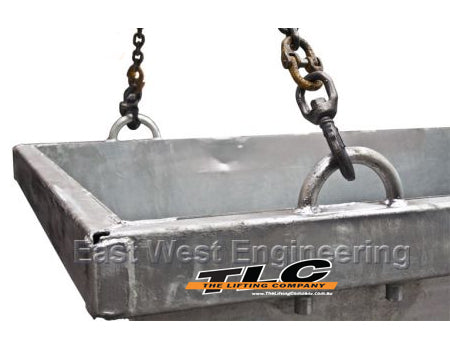

• Supplied standard with 4 crane lugs and upending lugs
• Self dumping mechanism allows the operator to safely activate tipping cycle from driver’s seat
• Made from 3mm plate and reinforced edging for demanding applications
• Fitted with removable drain plug

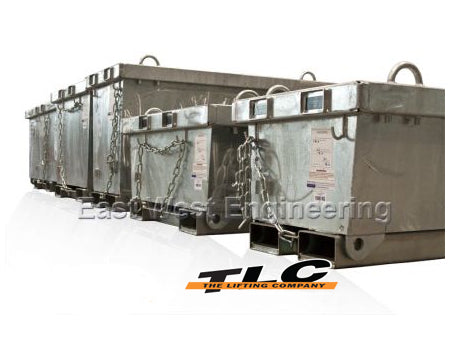

• Fork pockets and safety chain for quick connection to a forklift
• Optional wheel kit (2 swivel, 2 fixed) $300.00 excl. GST
• Galvanised finish
WFH Self Dumping Bins can be purchased complete with optional lid. To order, select desired bin code with ‘L’ suffix
(e.g. for 0.35 cubic metre bin – select type: WFH5X74L).
SPECIFICATIONS
| Model |
WLL (kg) |
Capacity (cu.m) |
Bin Length (mm) |
Bin Width (mm) |
Bin Height (mm) |
Pocket Size (mm) |
Pocket Centres (mm) |
Unit Weight (kg) |
| WFH5X74 | 1500 | 0.35 | 1510 | 740 | 630 | 185 x 70 | 310 | 130 |
| WFH5X11 | 1500 | 0.59 | 1510 | 1150 | 630 | 185 x 70 | 695 | 155 |
| WFH9X74 | 1500 | 0.68 | 1715 | 740 | 980 | 185 x 70 | 310 | 165 |
| WFH9X11 | 1500 | 1.1 | 1715 | 1150 | 980 | 185 x 70 | 695 | 200 |
| WFH9X20 | 1500 | 2.1 | 1715 | 1986 | 980 | 185 x 70 | 695 | 260 |
