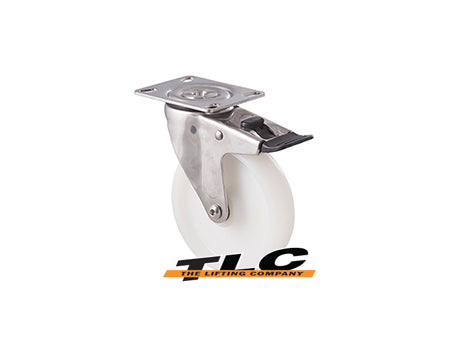

M Stainless
Based on the versatile M Series castors, these stainless steel castors are able to carry up to 200 kg each and are available in 75, 100 and 125 mm sizes, in a wide range of wheel types.
| Load rating: | 85–200 kg |
| Wheels: | Thermoplastic elastomer, white nylon, grey rubber, polyurethane |
| Forks: | Stainless steel in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
MJC wheel
Max load: 85 kg
Material: Thermoplastic elastomer
Bearing: Stainless steel deep goove ball bearing
Also available in anti-static, or with plain bearing
Thread guard: Yes
| Order code: | MJC75G |
| Diameter: | 75 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | MJC100G |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | MJC125G |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | MJC75G/MSP |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJC75G/MSPTB |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MJC75G/MSPDL |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 |
| Enquiry Now | |
Fixed plate
| Order code: | MJC75G/MSF |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MJC75G/MSH |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJC75G/MSHTB |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MJC75G/MSHDL |
| Max load: | 85 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | MJC100G/MSP |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJC100G/MSPTB |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MJC100G/MSPDL |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | MJC100G/MSF |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MJC100G/MSH |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJC100G/MSHTB |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MJC100G/MSHDL |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | MJC125G/MSP |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJC125G/MSPTB |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MJC125G/MSPDL |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | MJC125G/MSF |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MJC125G/MSH |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJC125G/MSHTB |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MJC125G/MSHDL |
| Max load: | 85 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
MSC wheel
Max load: 140–150 kg
Material: Grey rubber
Bearing: Deep goove ball bearing
Also available with plain bearing
Thread guard: Yes
| Order code: | MSC100G |
| Diameter: | 100 mm |
| Tread: | 34 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | MSC125G |
| Diameter: | 125 mm |
| Tread: | 34 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | MSC100G/MSP |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MSC100G/MSPTB |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MSC100G/MSPDL |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | MSC100G/MSF |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MSC100G/MSH |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MSC100G/MSHTB |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MSC100G/MSHDL |
| Max load: | 140 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | MSC125G/MSP |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MSC125G/MSPTB |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MSC125G/MSPDL |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | MSC125G/MSF |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MSC125G/MSH |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MSC125G/MSHTB |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MSC125G/MSHDL |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
MNN white wheel
Max load: 150 kg
Material: White nylon
Bearing: Plain bearing
Thread guard: No
| Order code: | MNN75WS |
| Diameter: | 75 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | MNN100WS |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | MNN125WS |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | MNN75WS/MSP |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MNN75WS/MSPTB |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MNN75WS/MSPDL |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 |
| Enquiry Now | |
Fixed plate
| Order code: | MNN75WS/MSF |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MNN75WS/MSH |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MNN75WS/MSHTB |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MNN75WS/MSHDL |
| Max load: | 150 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 |
| Enquiry Now | |
100 mm castors
Swivel plate
| Order code: | MNN100WS/MSP |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MNN100WS/MSPTB |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MNN100WS/MSPDL |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | MNN100WS/MSF |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MNN100WS/MSH |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MNN100WS/MSHTB |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MNN100WS/MSHDL |
| Max load: | 150 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | MNN125WS/MSP |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MNN125WS/MSPTB |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | MNN125WS/MSPDL |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | MNN125WS/MSF |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | MNN125WS/MSH |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MNN125WS/MSHTB |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | MNN125WS/MSHDL |
| Max load: | 150 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
DNC wheel
Max load: 200 kg
Material: White nylon
Bearing: Precision ball bearing
Thread guard: No
| Order code: | DNC125 |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
125 mm castors
Swivel plate
| Order code: | DNC125W/MSP |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | DNC125W/MSPTB |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | DNC125W/MSPDL |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | DNC125W/MSF |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | DNC125W/MSH |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | DNC125W/MSHTB |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | DNC125W/MSHDL |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
QUC wheel
Max load: 200 kg
Material: Polyurethane on nylon
Bearing: Stainless steel precision ball bearing
Also available with plain bearing
Thread guard: Yes
| Order code: | QUC75G |
| Diameter: | 75 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | QUC100G |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
| Order code: | QUC125G |
| Diameter: | 125 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
75 mm castors
Swivel plate
| Order code: | QUC75G/MSP |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | QUC75G/MSPTB |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | QUC75G/MSPDL |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 |
| Enquiry Now | |
Fixed plate
| Order code: | QUC75G/MSF |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | QUC75G/MSH |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | 71 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QUC75G/MSHTB |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QUC75G/MSHDL |
| Max load: | 200 kg |
| Mount height: | 106 mm |
| Turning radius: | 118 |
| Enquiry Now | |
100 mm castors
125 mm castors
Swivel plate
| Order code: | QUC125G/MSP |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | QUC125G/MSPTB |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Swivel plate and direction lock
| Order code: | QUC125G/MSPDL |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
Fixed plate
| Order code: | QUC125G/MSF |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | QUC125G/MSH |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 103 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | QUC125G/MSHTB |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole and direction lock
| Order code: | QUC125G/MSHDL |
| Max load: | 200 kg |
| Mount height: | 161 mm |
| Turning radius: | 128 |
| Enquiry Now | |
