FBS Bale Spears

No review yet. Write Review

$0.00

Description

Product	Code
Bale Spear 1250 x 45mm dia	FBS4-110
Bale Spear 1050 x 45mm dia	FBS4-90
Bale Spear 1100 x 36mm dia	FBS25-90

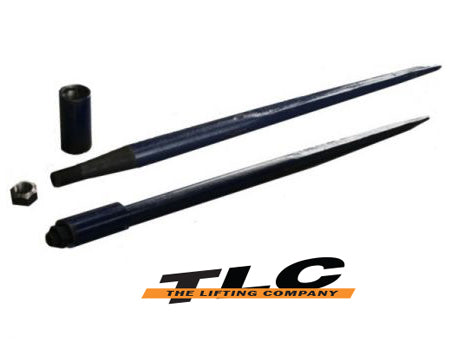

The FBS BALE SPEARS are available in three sizes and are supplied complete with Conus sleeve and nut. They are designed for the safe and efficient handling of bales with a tractor or loader fitted with a suitable attachment. Price per single spear.

TYPE	Overall length	Clear Tine length	Tine Diam	WLL@ 500 LC	Wgt	Sleeve Size
FBS4-110	1250mm	1100mm	45mm	400kg	13kg	Conus II
FBS4-90	1050mm	900mm	45mm	400kg	10kg	Conus II
FBS25-90	1100mm	970mm	36mm	250kg	6kg	Conus I
