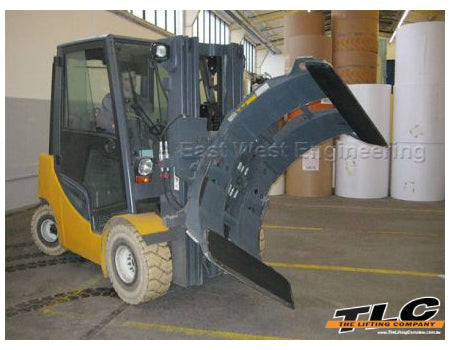

Paper Roll Clamp
| Product | Code |
|---|---|
| Paper Roll Clamp CL2 | S18-RK13-360 |
Paper roll clamps are intended for handling cylindrical goods. Paper roll clamps operate with one long hydraulically adjustable arm and one short adjustable arm. All clamps have a rotation range of 360° continuous in both directions. The contact pads of the arms can be made to customer specifications. Different types of coating available. Concrete pipe clamps operate with one long hydraulically adjustable arm and one short manually adjustable arm. The rotation range of 360° is continuous in both directions. All clamps are serially equipped with rubber coated contact pads.
|
Model |
Clamp Capacity @ Load Centre |
Mounting Class |
Roll Range |
Pad Size |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
S18-RK13-360 |
1300@550 |
II |
250-1100 |
720X200 |
470 |
205 |
250 |
|
1100@650 |
II |
250-1300 |
720X200 |
490 |
205 |
280 |
|
|
S18-RK16-360 |
1600@650 |
II |
250-1300 |
720X200 |
550 |
210 |
290 |
|
1350@750 |
II |
250-1500 |
720X200 |
590 |
210 |
320 |
|
|
S18-RK20-360 |
2000@650 |
III |
250-1300 |
820X230 |
650 |
220 |
305 |
|
1600@800 |
III |
250-1600 |
820X230 |
710 |
220 |
350 |
|
|
S18-RK23-360 |
2300@650 |
III |
250-1300 |
820X230 |
690 |
225 |
315 |
|
1850@800 |
III |
250-1600 |
820X230 |
750 |
225 |
360 |
|
|
S18-RK25-360 |
2500@700 |
III |
250-1400 |
820X230 |
740 |
230 |
305 |
|
2150@800 |
III |
250-1600 |
820X230 |
780 |
230 |
335 |
|
|
S18-RK32-360 |
3200@750 |
III/IV |
250-1800 |
1000X250 |
1160 |
255 |
320 |
|
2650@900 |
III/IV |
350-1800 |
1000X250 |
1240 |
255 |
370 |
|
|
S18-RK40-360 |
4000@900 |
IV |
350-1800 |
1000X250 |
1510 |
285 |
355 |
|
3400@1050 |
IV |
350-2100 |
1000X250 |
1630 |
285 |
390 |
|
|
S18-RK50-360 |
5000@950 |
IV |
400-1900 |
1200X280 |
1840 |
295 |
395 |
|
4500@1050 |
IV |
400-2100 |
1200X280 |
1890 |
295 |
410 |
