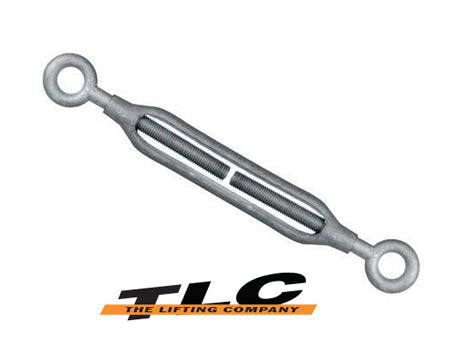

Turnbuckle Forged GAL Eye/Eye JIS

No review yet. Write Review

$0.00

Size

6mm 8mm 10mm 12mm 16mm 20mm 22mm 25mm 28mm 32mm

InStock SOLD OUT

Description

• Suitable for outdoor use in conjunction with wire rope assemblies etc for heavy duty tensioning applications.
• Manufactured from forged steel in hot dipped galvanised finish.

• Eye and eye end fittings for intended applications.


SIZE	CODE	WLL (kg)	wt. (kg)	DIMENSIONS(mm)
(mm)	CODE	WLL (kg)	wt. (kg)	B	D	D1	L1
6	404006	70	0.1	100	6	11	48
8	404008	100	0.18	125	8	14	58
10	404010	230	0.31	150	10	18	70
12	404012	320	0.55	200	12	19	95
16	404016	630	1.1	250	16	24	105
20	404020	980	1.94	300	20	26.5	130
22	404022	1220	2.64	330	22	34	165
25	404025	1410	4	350	24	37	190
28	404028	1700	6	350	27	38	160
32	404032	2100	10	400	32	38	200
