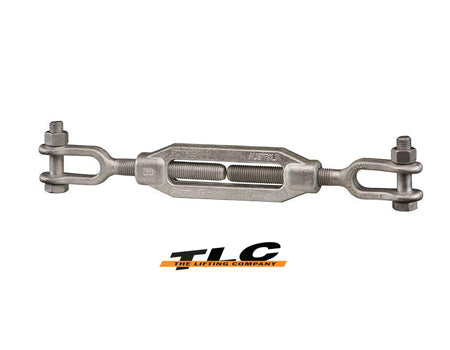

Clevis & Clevis Turnbuckles

Clevis & Clevis Turnbuckles

Clevis & Clevis Turnbuckles

Clevis & Clevis Turnbuckles

No review yet. Write Review

$0.00

Description

- AS2319 – 2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Available on Request:
- Lock Nuts

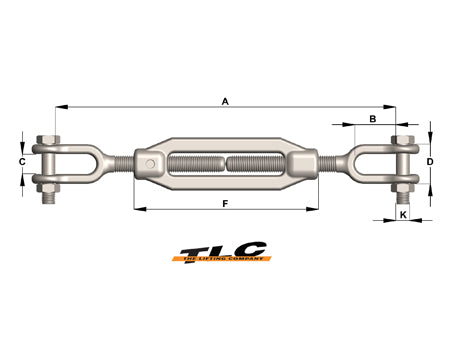

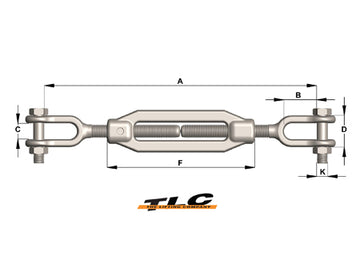

Grade L	0.3	M10	240	350	30	14	30	150	10	0.5	TBCCL10
Grade L	0.5	M12	335	470	36	15	35	190.5	10	0.84	TBCCL12
Grade L	0.75	M16	355	490	45	20	40	204	12	1.6	TBCCL16
Grade L	1.25	M20	440	520	46	22	46	216.5	16	2.8	TBCCL20
Grade L	2.5	M24	450	585	59	30	58	232	20	4.57	TBCCL24
Grade L	5	M33	630	780	78	38	76	252	27	8	TBCCL33
Grade L	5	1.25	520	670	70	38	N/A	255	25	7.94	TBCCL1250
Grade L	6	1.5	550	740	70	48	N/A	275	32	13.47	TBCCL1500
Grade P	0.6	M10	240	350	30	14	30	150	10	0.5	TBCC10P
Grade P	1	M12	335	470	36	15	35	190.5	10	0.84	TBCC12P
Grade P	1.6	M16	355	490	45	20	40	204	12	1.6	TBCC16P
Grade P	2.5	M20	440	520	46	22	46	216.5	16	2.8	TBCC20P
Grade P	4	M24	450	585	59	30	58	232	20	4.57	TBCC24P
Grade P	8	M33	630	780	78	38	76	252	27	8	TBCC33P
Grade S	0.8	M10	240	350	30	14	30	150	10	0.5	TBCC10S
Grade S	1.2	M12	335	470	36	15	35	190.5	10	0.84	TBCC12S
Grade S	2	M16	355	490	45	20	40	204	12	1.6	TBCC16S
Grade S	3.2	M20	440	520	46	22	46	216.5	16	2.8	TBCC20S
Grade S	5	M24	450	585	59	30	58	232	20	4.57	TBCC24S
Grade S	10	M33	630	780	78	38	76	252	27	8	TBCC33S
