ASL10 Self Loading Trailer
| Product | Code |
|---|---|
| ASL10 Self Loading Trailer 1T | ASL10 |

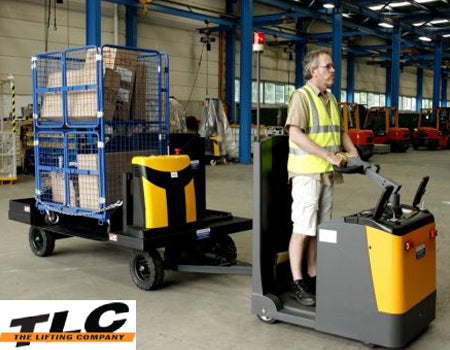

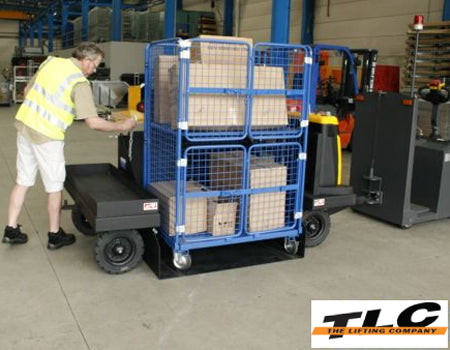

The ASL10 Self Loading Tow Trailer can be towed by towing tug or forklift, and is suitable for factory production line applications with easy side entry to the electrically operated 1200 x 1245 tray.

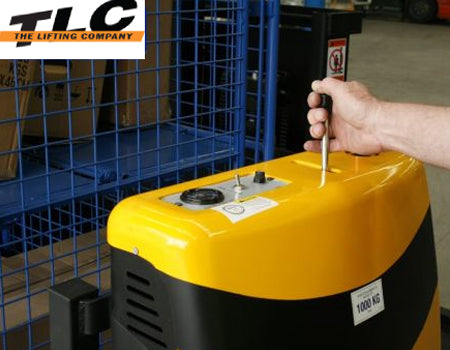

Design features include an easy to operate front control unit for raising and lowering the pallet size tray, rear tow hitch for multi-link towing and a large rear tool tray. Can be easily operated by one person.
Specifications:

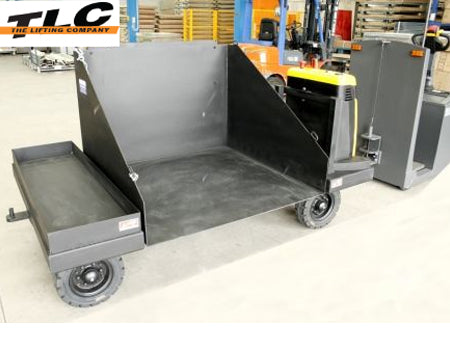

- 1200mm x 1245mm tray with 400mm raise height
- Front tow hitch with bearing turntable steering
- Rear tow hitch for multi linking
- Solid 370mm dia puncture proof tyres
- Fully self-contained hydraulics and 12 volt system
- Battery charger and battery condition indicator included

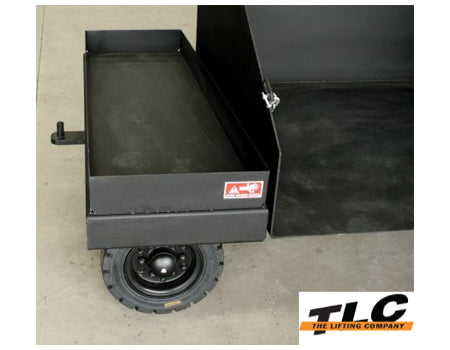

- Large integrated rear tool tray
- Rear suspension
We can custom build other sizes to suit. Prices on application.
Dimensions:
- Overall length: 2960mm (inc. draw bar and tow hitch)
- Overall width: 1420mm
- Overall height: 1320mm
- Working Load Limit (WLL): 1000kg
- Tray size 1200mm x 1245mm
- Weight: 710kg
