| Product | Code |
|---|---|
| Double Pallet Handler C2 | S7-DPK20-S |
| Double Pallet Handler C3 | S7-DPK25-S0 |
PRICE ON APPLICATION

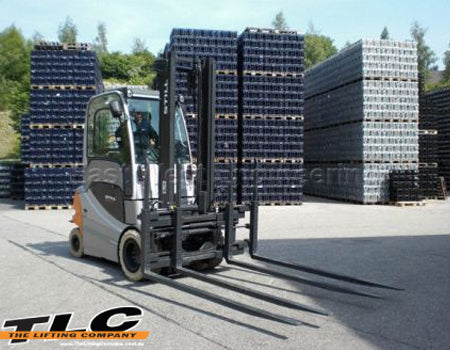

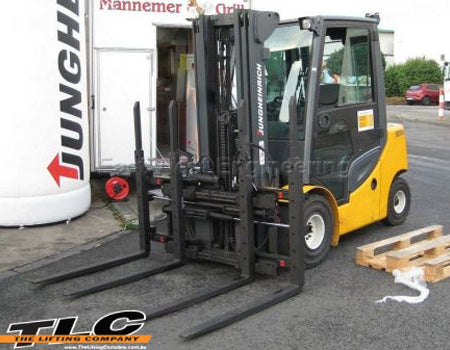

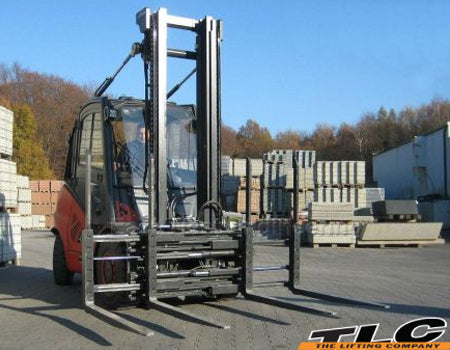

With the double pallet handler the fork opening ranges can be adjusted hydraulically, so that either 1 or 2 or alternatively, 2 or 4 pallets can be picked up. To achieve load stability, the outer forks are mounted 10 mm higher so that the load gets a slight drop inwards.
For one-sided loading and unloading of trucks, double pallet handlers with telescopic forks or a load extender provide an ideal solution for locations offering limited space.
Multiple pallet handlers can flexibly and efficiently handle various numbers of pallets.
|
Model |
Capacity @ Load Centre |
Mounting Class |
Body Width |
Opening Range |
Sideshift |
Fork Size |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
(mm) |
OTO (mm) |
OTO (mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
S7-DPK 20-S |
2000@600 |
II |
1250 |
560-1960 |
+/-100 |
1150x80x40 |
520 |
170 |
215 |
|
S7-DPK 25-S |
2500@600 |
III |
1250 |
560-1960 |
+/-100 |
1150x80x50 |
580 |
170 |
230 |
|
S7-DPK 35-S |
3500@500 |
III |
1260 |
560-1960 |
+/-100 |
1150x80x50 |
690 |
205 |
225 |
|
S7-DPK 48-S |
2800@1200 |
III |
1400 |
560-1960 |
+/-100 |
2400x80x60 |
960 |
210 |
530 |
|
S7-DPK 50-S |
3200@1200 |
IV |
1400 |
560-1960 |
+/-100 |
2400x80x60 |
1040 |
220 |
475 |
|
S7-DPK 60-S |
4500@1200 |
IV |
1400 |
560-1960 |
+/-150 |
2400x80x70 |
1210 |
220 |
500 |
