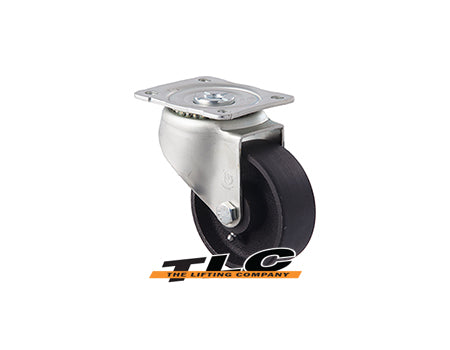

J Series High/Low Temperature
Based on the heavy duty J Series, these high and low temperature castors are the perfect choice for extreme temperature environments like ovens or industrial freezers.
| Load rating: | Up to 230 kg (-30°C–400°C) |
| Wheels: | Glass reinforced nylon, cast iron |
| Forks: | Zinc plated Core Coat™ in swivel plate, fixed plate, and bolt hole configurations |
| Warranty: | One year |
|
Mount dimensions: |
|
Castor options
JHH wheel
Max load: 100 kg (-30°C–150°C), 90 kg (180°C), 80 kg (210°C), 60 kg (230°C for short periods only)
Material: Glass reinforced nylon, heavy hub
Bearing: Plain bearing
Thread guard: No
| Order code: | JHH100 |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 45 mm |
| Bore: | 20 mm |
| Enquiry Now | |
High temperature castors
Swivel plate
| Order code: | JHH100/JZPHT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
Fixed plate
| Order code: | JHH100/JZFHT |
| Mount height: | 129 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | JHH100/JZHHT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
Low temperature castors
Swivel plate
| Order code: | JHH100/JZPLT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
Fixed plate
| Order code: | JHH100/JZF |
| Mount height: | 129 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | JHH100/JZHLT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
JCI wheel
Max load: 230 kg (-30°C–400°C)
Material: Cast iron
Bearing: Plain bearing
Thread guard: No
| Order code: | JHH100 |
| Diameter: | 100 mm |
| Tread: | 38 mm |
| Hub: | 45 mm |
| Bore: | 20 mm |
| Enquiry Now | |
High temperature castors
Swivel plate
| Order code: | JCI100/JZPHT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
Fixed plate
| Order code: | JCI100/JZFHT |
| Mount height: | 129 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | JCI100/JZHHT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
Low temperature castors
Swivel plate
| Order code: | JCI100/JZPLT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
Fixed plate
| Order code: | JCI100/JZF |
| Mount height: | 129 mm |
| Turning radius: | n/a |
| Enquiry Now | |
Bolt hole
| Order code: | JCI100/JZHLT |
| Mount height: | 129 mm |
| Turning radius: | 90 mm |
| Enquiry Now | |
