SGB Gas Cylinder Cage
| Product | Code |
|---|---|
| 2040mm wide – Flatpacked | SGB249 |
| 2040mm wide – Assembled | SGB249A |
| 1080mm wide – Flatpacked | SGB129 |
| 1080mm wide – Assembled | SGB129A |

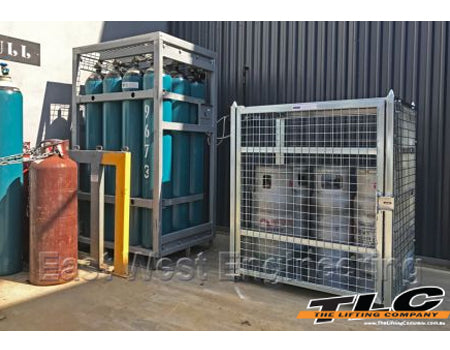

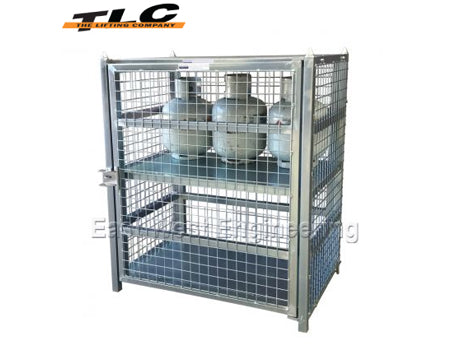

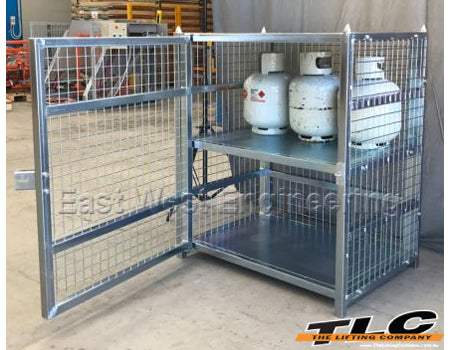

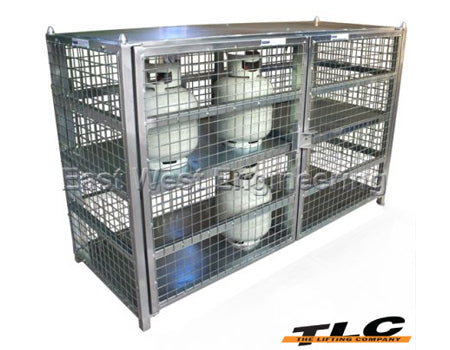

The SGB GAS CYLINDER STORAGE CAGE is a heavy duty lockable cage suited for storage of up to 24 x 9kg BBQ gas bottles. The centre shelf and vertical supports can be removed for storing up to 12 x forklift gas cylinders or other uses like firewood storage in service stations where easy access and excellent security is a requirement.
Features:
- Tamper-proof lock guard prevents cutting of the padlock by bolt cutters, along with anti-tamper gate hinges
- Sturdy construction with bump rails to protect the high visibility mesh sides

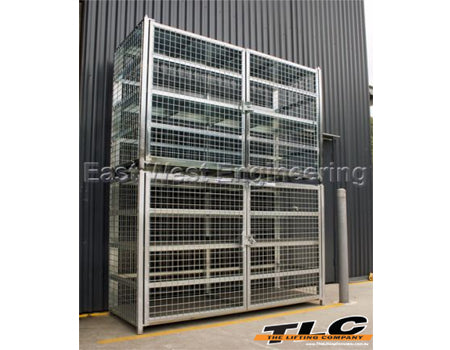

- Stack 3 high when empty and 2 high when fully loaded

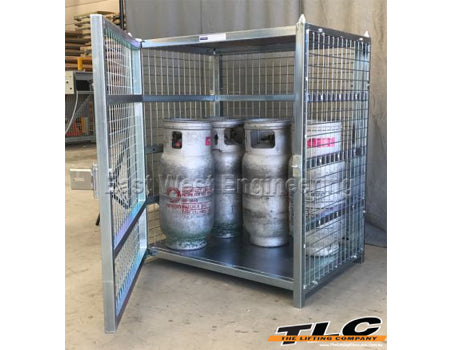

- Bolted mid shelf can be excluded during construction for storage of 18kg forklift gas bottles
- Sheet metal shelves allow easy sliding of cylinders to the back of the cage.
- Sheet metal roof provides weather protection

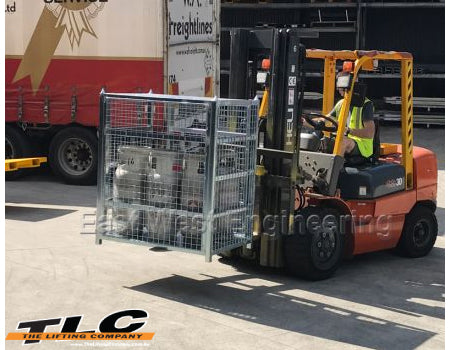

- Forklift provision is provided under the cage for transport around worksite
- Optional wheel kit available on request: $200.00 excl. GST per set of 4
- Zinc finish for long life corrosion protection

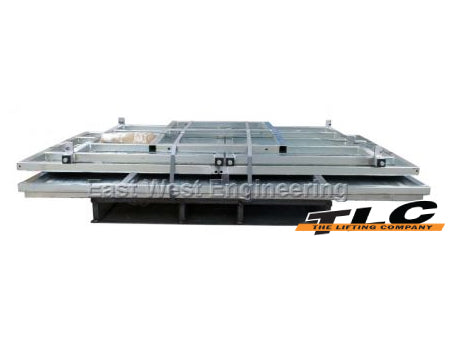

Supplied standard as ‘flatpack’ (for on-site assembly) – for assembled version please order with ‘A’ suffix (e.g. SGB249A)
| Model |
Storage Capacity (with mid-shelf) |
Storage Capacity (no mid-shelf) |
Working Load Limit (kg) |
O/All Dimensions (mm) |
Unit Weight (kg) |
| SGB129 |
12 x 9kg |
6 x 18kg |
250 |
1080 x 760 x 1285 |
106 |
| SGB249 |
24 x 9kg |
12 x 18kg |
500 |
2040 x 760 x 1285 |
200 |
*Gas cylinders not included, shown for display purposes only.
