WFL Tipping Bins Lever Release
| Product | Code |
|---|---|
| Lever Release Bin 0.35 m | WFL5X74 |
| Lever Release Bin 0.35 m (complete with Lid) | WFL5X74L |
| Lever release Bin 0.68 m | WFL9X74 |
| Lever Release Bin 0.68 m(complete with Lid) | WFL9X74L |
| Lever Release Bin 0.59 m | WFL5X11 |
| Lever release Bin 0.59 m (complete with Lid) | WFL5X11L |
| Lever Release Bin 1.1 m | WFL9X11 |
| Lever Release Bin 1.1 m (complete with Lid) | WFL9X11L |
| Lever Release Bin 2.1 m | WFL9X20 |
| Lever Release Bin 2.1 m (complete with Lid) | WFL9X20L |

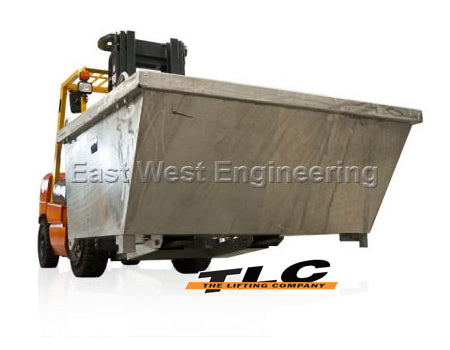

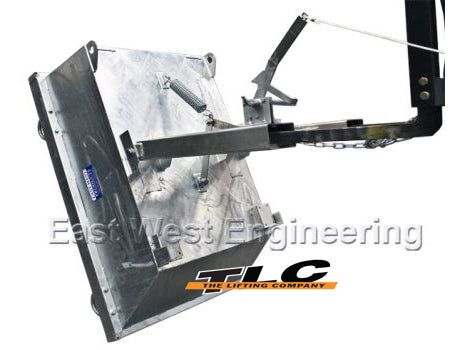

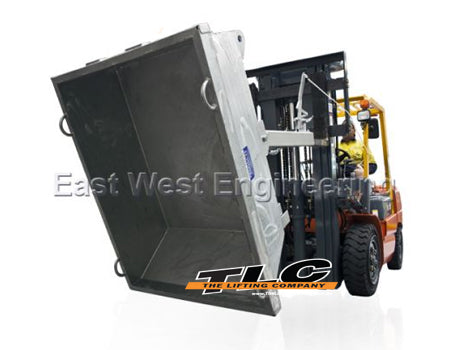

The WFL Tipping Bins have been designed to provide an economical solution to collecting and disposing of industrial waste and other uses. The bins feature a low profile allowing versatility in confined spaces. The release mechanism is activated by the forklift operator pulling the pull cord from the driver’s seat. A custom built shock absorber prevents impact forces being transmitted to the forklift during emptying. WFL bins are manufactured from 3mm plate and feature reniforced edging and crane lugs.
SPECIFiCATIONS
- Working Load Limit (WLL): 1500kg
- Fork Pocket size: 185 x 70mm
- Overall length of bin : 1807mm

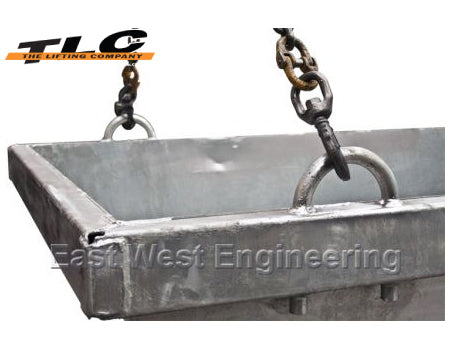

- Crane and upending lugs fitted standard
- Finished in H.D. Galvanised
- Fitted with removable drain plug

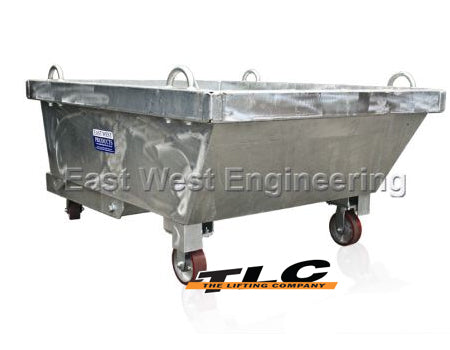

- Optional wheel kit available (2 swivel, 2 fixed) $300.00 excl. GST
WFL Lever release Tipping Bins can be purchased complete with optional lid. To order select desired bin code with ‘L’ suffix
(e.g. for 0.35 cubic metre bin – select type: WFL5X74L).
A comprehensive product specification sheet is available on pdf see below.
| BIN TYPE | CAPACITY |
OVERALL WIDTH |
BIN HEIGHT (excl. Lugs) |
HCG |
POCKET CENTRES |
UNIT WEIGHT |
| WFL5X74 | 0.35 cu m | 740mm | 555mm | 670mm | 310mm | 140kg |
| WFL9X74 | 0.68 cu m | 740mm | 905mm | 757mm | 310mm | 180kg |
| WFL5X11 | 0.59 cu m | 1150mm | 555mm | 822mm | 695mm | 165kg |
| WFL9X11 | 1.1 cu m | 1150mm | 905mm | 750mm | 695mm | 215kg |
| WFL9X20 | 2.1 cu m | 1986mm | 905mm | 725mm | 695mm | 275kg |
