Products
CSD Self Dumping Bins
| Product | Code |
|---|---|
| Self Dumping 0.95 cu.m -Galv. | CSD9-G |
| Self Dumping 1.25 cu.m – Galv. | CSD12-G |
| Self Dumping 1.85 cu.m -Galv. | CSD18-G |

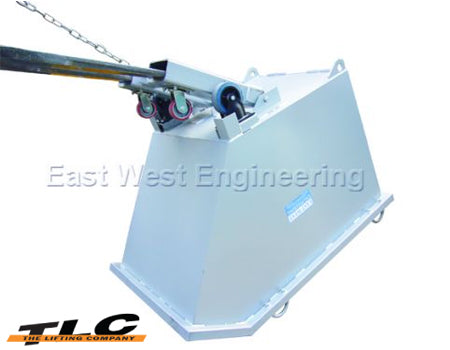

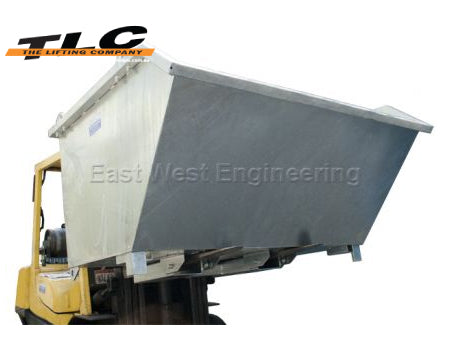

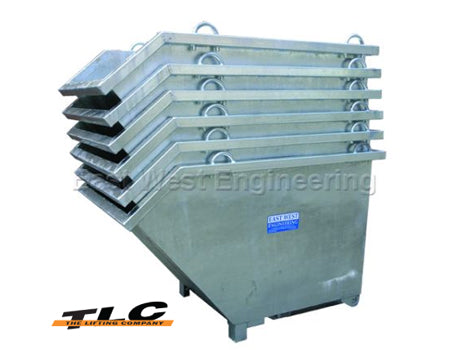

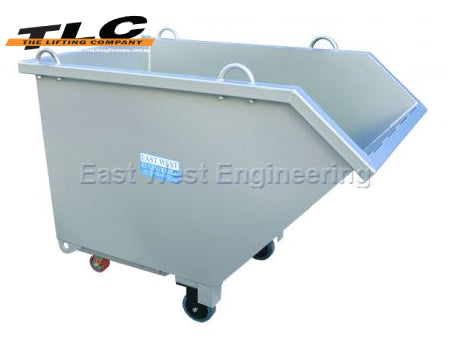

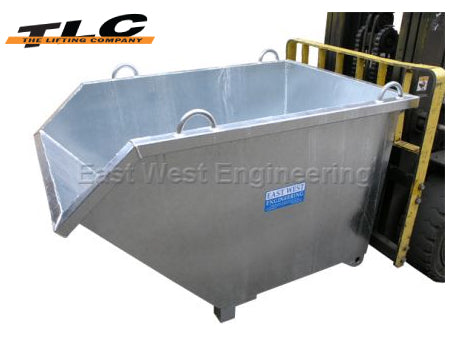

The economical type CSD Tipping Bin is a self dumping bin suitable for most waste handling applications. Being a nesting bin, it uses minimum of space for storage and transport. This bin is supplied standard with 4 crane lugs and upending lugs. It is also fitted with drain plug and wheel brackets (wheels not supplied unless ordered).
The type CSD Tipping Bins have a Zinc plated finish.
SPECIFICATIONS:
• Safe Working Load 1500kg
• Unit Weight – refer Table
• Volume Capacity – refer Table
• Pocket size 185 x 75mm
• CSD9 Pocket Centres – 340mm
• CSD12 & 18 Pocket Centres – 630mm
• HCG 550mm
• VCG 340mm
• Wheels Optional
• Drain Valve & Strainer Optional

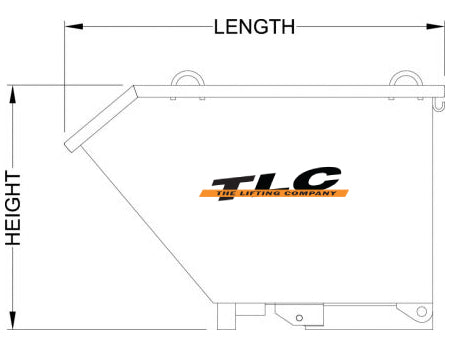

| Type |
Capacity (cu.m) |
SWL (kg) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
| CSD9 |
0.95 |
1500 |
1570 |
1010 |
1010 |
180 |
| CSD12 |
1.25 |
1500 |
1570 |
1310 |
1010 |
205 |
| CSD18 |
1.85 |
1500 |
1570 |
1910 |
1010 |
245 |
