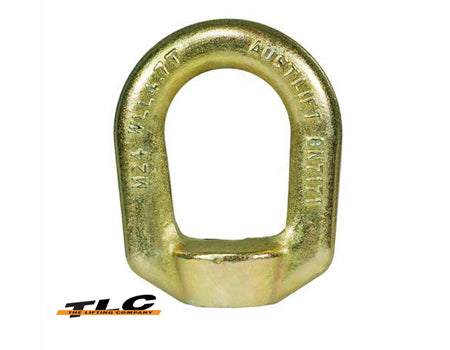

Eye Nut Bow Zinc

No review yet. Write Review

$0.00

Size

M24

InStock SOLD OUT

Description

Bow nut in accordance with requirements of ASME B30.26, used as a removable hanging eye nut where a rated male thread or bolt can be utilised commonly used in the mining industry.

• Made from C15 carbon steel and tempered with zinc plated finish, manufactured with a bow shape, available in metric thread sizes only.
• Marked with working load limit in tonne, nominal size in millimetre, batch numbered and supplier identification.
• Proof tested to 2 x working load limit and minimum breaking force of 5 x working load limit.


SIZE(mm)	CODE	WLL(T)	Wt.(kg)	DIMENSIONS (mm)
SIZE(mm)	CODE	WLL(T)	Wt.(kg)	D	D2	D3	H	H1	W	W1
M24	602035	4.7	1.18	24	46	21	125	75	98	53

Back to Eye bolts and Nuts
