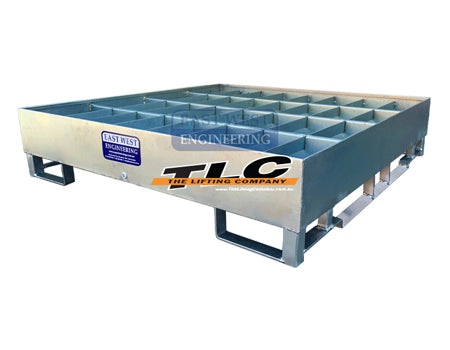

SLR4 Racking Spill Bin

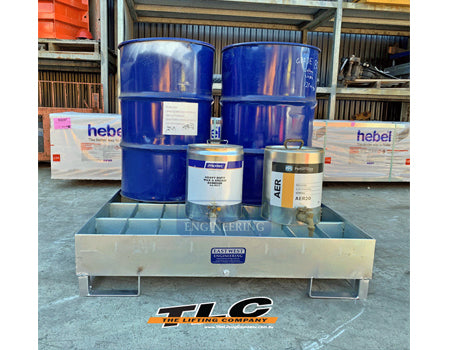

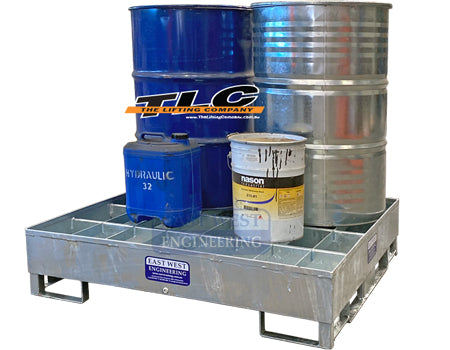

The SLR4 Spill Bin provides complete protection against costly and environmentally damaging chemical spills from leaking drums. This pallet racking friendly spill bin is designed for storage of up to 4 standard 205 litre bins and can be transported by forklift or pallet trolley.
FEATURES:
• Suits 4 x 205 litre drums

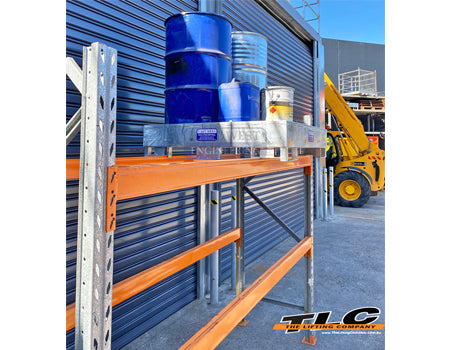

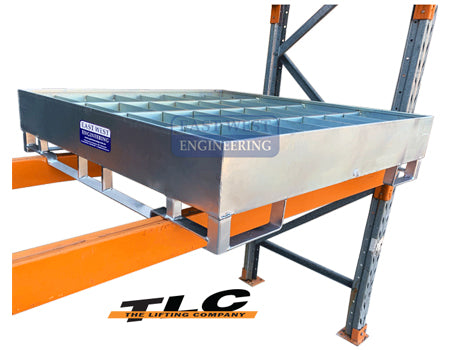

• Racking locators in base allow storage of drums in pallet racking
• Close spacing support bars allows direct placement of large or small drums
• Timber pallets may be fitted within the raised skirt if required
• Fitted with a drain plug to empty the containment area

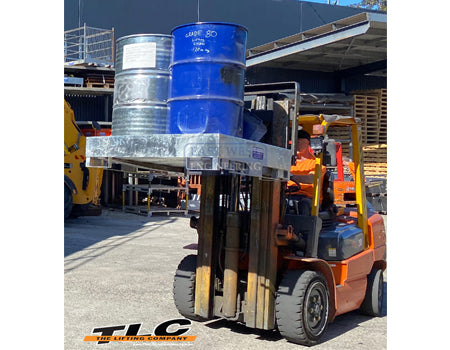

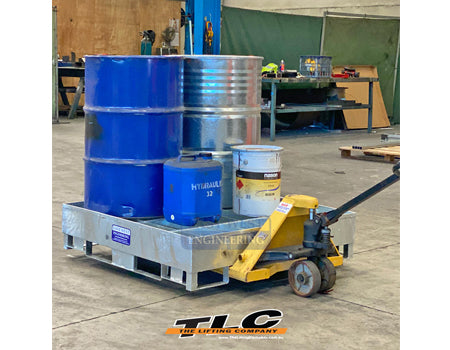

• Elevated base allows transport by forklift or pallet trolley
• Steel fabricated, non-flammable unit
• Provides a spill capacity exceeding Australian Standards for ‘portable’ units

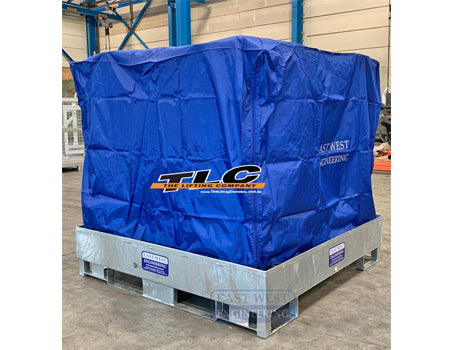

• Optional Nylon Storage Cage Cover (PCT-02CC) available on request
• Long life galvanised finish
SPECIFICATIONS:
| No. of Drums | 4 |
| Working Load Limit (WLL) | 2000kg |
| Width | 1210mm |
| Depth | 1210mm |
| Height | 265mm |
| Unit Weight | 70kg |
 |
Reference should be made to AS1940 and other relevant Australian Standards in regards to the maximum capacity allowed for the storage of flammable, dangerous or combustible liquids and necessary precautions required along with minimum separation distances. This unit exceeds the minimum spill capacity requirements of a portable bunding unit used for transit storage as per standard AS1940 (Flammable & Combustible Liquids), AS3780 (Corrosive Substances) and AS/NZS 3833 (Dangerous Goods).
|
