Products

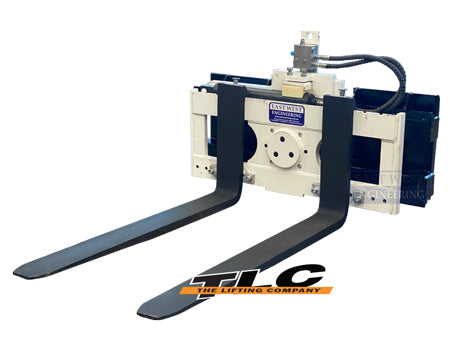

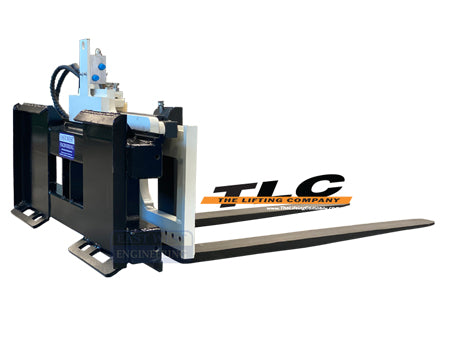

QSSXR3-23 Skid Steer 180° Rotator
The QSSXR3-23 Skid Steer 180° Rotator is designed to increase the functionality of your skid steer or track loader to hydraulically rotate loads 180° and handle palletised loads.
FEATURES:
• Ideal for load inverting and dumping applications
• 180° rotation used to turn or pour load’s content
• Universal skid steer hitch suits most models incl. CAT, Case, Bobcat, Gehl, Mustang, New Holland
• Single hydraulic cylinder produces a smooth, high torque rotation
• Self-lubricating bearings and chrome shafts eliminate maintenance
• Designed to attach quickly to your skid steer
• Rotator Fork Arms supplied with full load bearing upper and lower hooks allowing equal rated load when inverted
• Excellent operator visibility

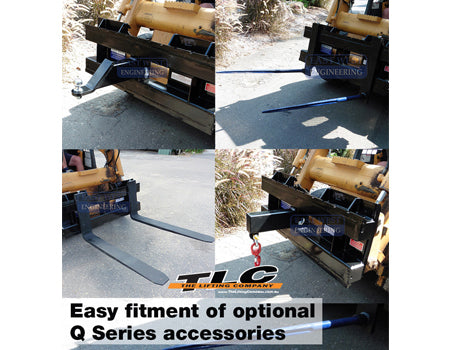

• Rotator can be removed for easy fitment of optional Q Series accessories

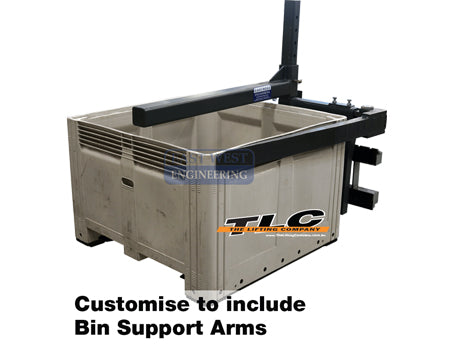

• Rotator can be customised to include bin support arms
• Designed in accordance with AS2359.1 and ISO 23206
SPECIFICATIONS:
|
Working Load Limit |
2300kg |
|
Load Centre |
500mm |
|
Carriage Width |
1200mm |
|
Fork Arms |
125 x 35 x 1200mm clear length |
|
Unit Weight |
401kg |
 |
Hoses not included. One additional hydraulic circuit required. Please contact the truck manufacturer for the residual capacity of attachment.
|
