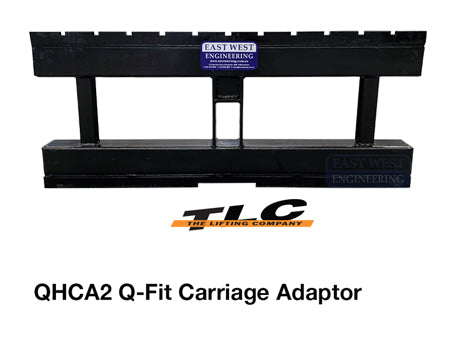

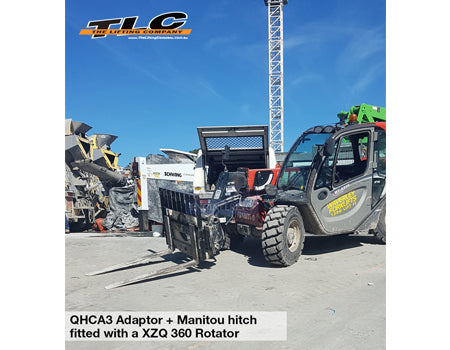

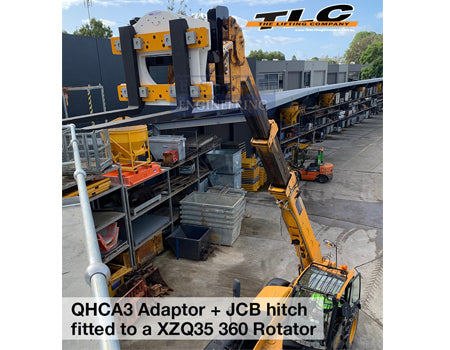

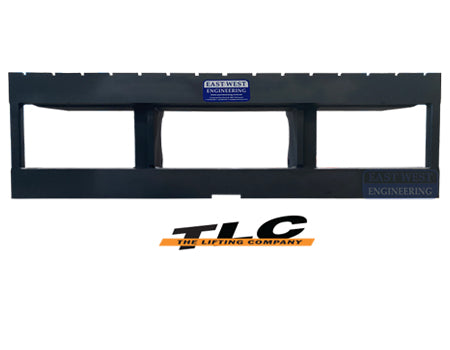

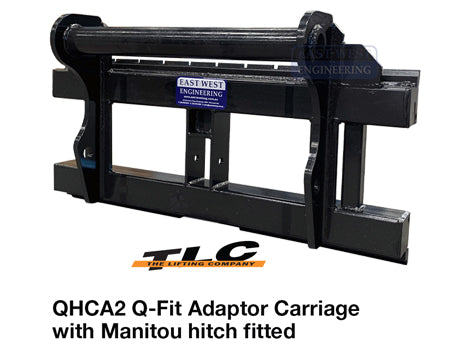

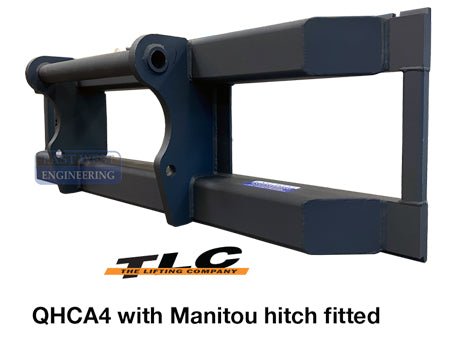

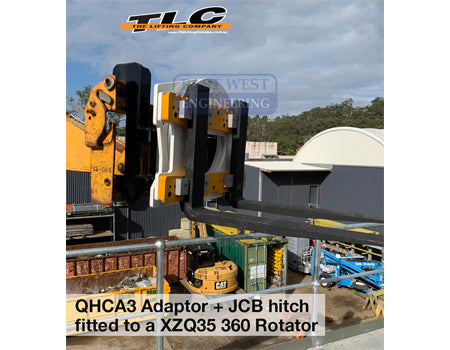

QHCA QH Carriage Adaptor
The QHCA Carriage Adaptor is designed for applications where fork tines and other attachments are to be fitted to a telehandler or loader machine with a 'quick hitch' or tool carrier. This unit is custom fitted with a quick hitch coupling to suit each telehandler carriage.
FEATURES:
• Universal fork carriage allowing customer to fit their fork tines and other attachments
• Custom manufactured and individually designed to suit most model telehandlers
• ISO/FEM Carriage Class 2, 3 & 4 models avilable
• Supplied with quick hitch as specified by customer
• Made from high grade steel
SPECIFICATIONS:
| Model |
ISO/FEM Class |
Working Load Limit (kg) |
Load Centre (mm) |
Carriage Width (mm) |
Unit Weight (kg) |
| QHCA2 | 2 | 2500 | 500 | 1200 | tba* |
| QHCA2-22 | 2 | 2500 | 500 | 2200 | tba* |
| QHCA3 | 3 | 4500 | 500 | 1200 | tba* |
| QHCA4-16 | 3 | 8000 | 600 | 1600 | tba* |
| QHCA4 | 4 | 8000 | 600 | 2400 | tba* |
* Unit weight varies on fitted hitch
** Other sizes and capacities available on request
