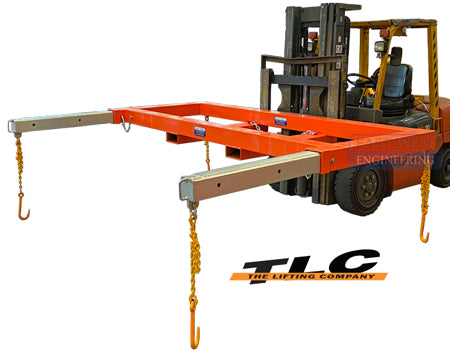

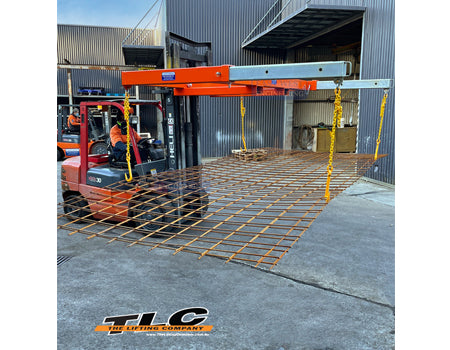

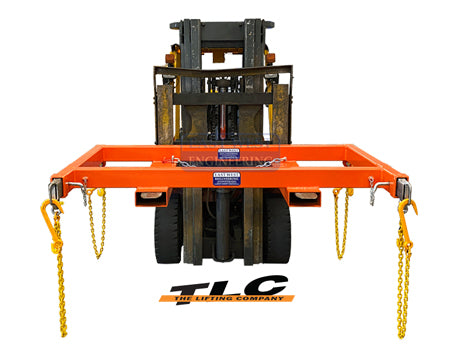

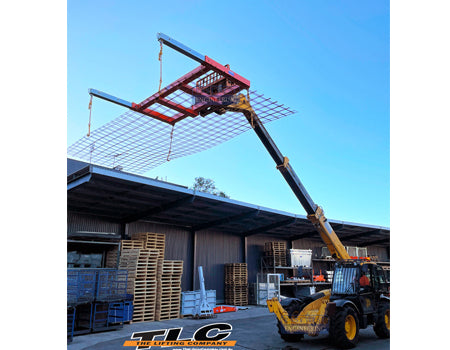

FMH2 Wire Mesh Lifter
The FMH2 Wire Mesh Lifter is designed to safely lift and transport wire mesh with ease around site by forklift.
FEATURES:
• Ideal for loading and moving wire mesh panels
• Load connection points are adjustable to 3 positions
• 1m chain & mesh hooks supplied
• Chain shorteners allow adjustment of load depth
• Slip-on attachment and safety chain for quick connection
• Enamel paint finish
SPECIFICATIONS:
| Model |
Working Load Limit (kg) |
Hook Centre Width (mm) |
Extension Position 1 (mm) |
Extension Position 2 (mm) |
Extension Position 3 (mm) |
Fork Pocket Size (mm) |
Fork Pocket Centres (mm) |
Unit Weight (kg) |
| FMH2-2020 | 2000 | 2000 | 1210 | 1600 | 2000 | 185 x 70 | 950 | 220 |
| FMH2-3024 | 2000 | 3000 | 1400 | 1900 | 2400 | 185 x 70 | 950 | 405 |
