DBC Drop Bottom Bins
| Product | Code |
|---|---|
| Drop Bottom Bin – 0.5cum | DBC500 |
| Drop Bottom Bin – 0.8 cu.m | DBC800 |
| Drop Bottom Bin – 1.1 cu.m | DBC1100 |

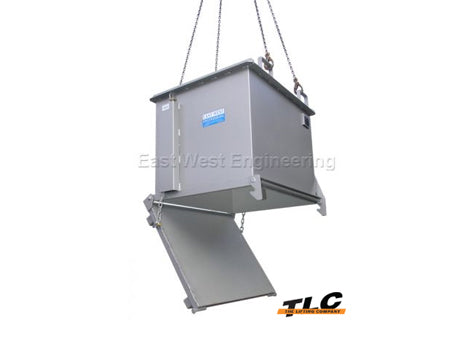

The heavy-duty DBC Drop Bottom Bin is designed for the efficient storage and transfer of all waste materials. This bin is emptied via a simple drop bottom base, allowing complete emptying of contents into a larger bin or dump truck. Base is closed by an automatic locking mechanism when bin is lowered to the ground.
FEATURES:
- Drop bottom based allows fast and complete dumping of waste
- Heavy-duty 3mm reinforced plate to handle all waste products
- Easily transported by forklift or overhead crane

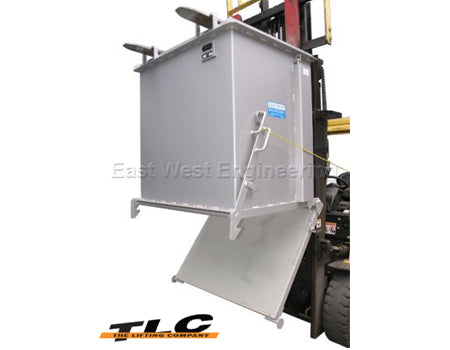

- Drop bottom base released safely from driver’s seat via a pull cord mechanism
- Powerful shock absorbing system removes all impact from the forklift or crane during emptying
- Crane lugs fitted as standard

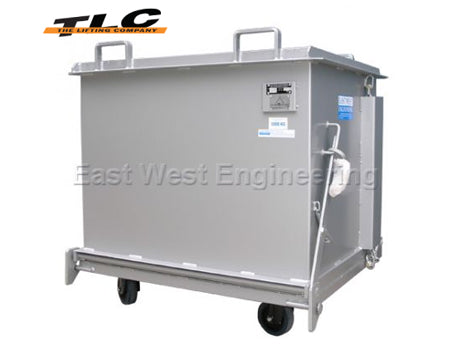

- Optional wheels available on request
- Optional galvanised lid available on request
- Zinc finish
SPECIFICATIONS:
| Model |
Working Load Limit |
Capacity |
Length |
Width |
Height |
Fork Pocket Size |
Fork Pocket Centres |
Unit Weight |
| DBC500 |
1000 |
0.5 |
1200 |
1025 |
745 |
160 x 65 |
684 |
200 |
| DBC800 |
1000 |
0.8 |
1200 |
1025 |
1045 |
160 x 65 |
684 |
225 |
| DBC1100 |
1000 |
1.1 |
1200 |
1025 |
1345 |
160 x 65 |
684 |
250 |
* dimensions exclude lifting lugs
