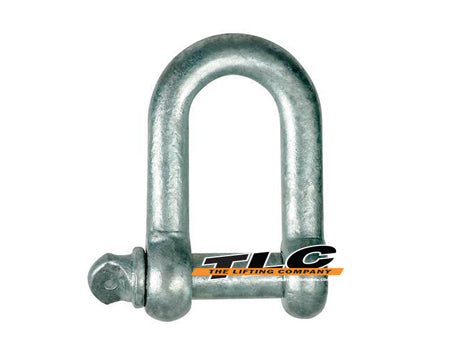

Shackle Commercial Dee Galvanised
Commercial grade large dee shackles are used in domestic,mining and other industrial applications.
• Shaped in a dee pattern, they come with screw pin, made from mild steel material and hot dipped galvanised.
• NOT FOR LIFTING APPLICATIONS.
 |
|||||
| SIZE (mm) | Wt. (kg) | DIMENSIONS (mm) | |||
| B | D | D1 | C | ||
| 5 | 0.015 | 10 | 5 | 5 | 19 |
| 6 | 0.025 | 12 | 6 | 6 | 24 |
| 8 | 0.054 | 16 | 8 | 8 | 32 |
| 10 | 0.109 | 20 | 10 | 10 | 40 |
| 12 | 0.205 | 25 | 12 | 12 | 48 |
| 16 | 0.48 | 32 | 16 | 16 | 64 |
| 20 | 0.815 | 38 | 20 | 20 | 76 |
| 22 | 1.285 | 44 | 22 | 22 | 85 |
| 25 | 1.866 | 55 | 25 | 24 | 95 |
