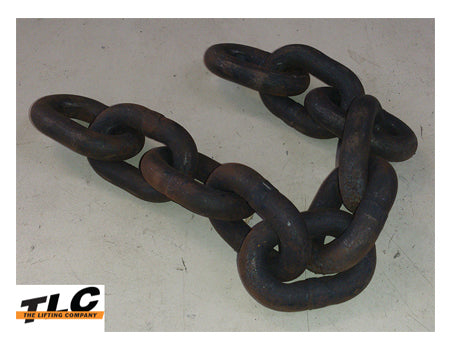

Alloy (Grade 80) Chain
Grade 80 Alloy chain is manufactured to Australian Standard AS 2321 from high quality hardened steel with a 4:1 safety factor.
Primarily utilised in industrial lifting applications, Grade 80 is the preferred chain for chain slings due to its high WLL capacity and low cost compared to other grades.

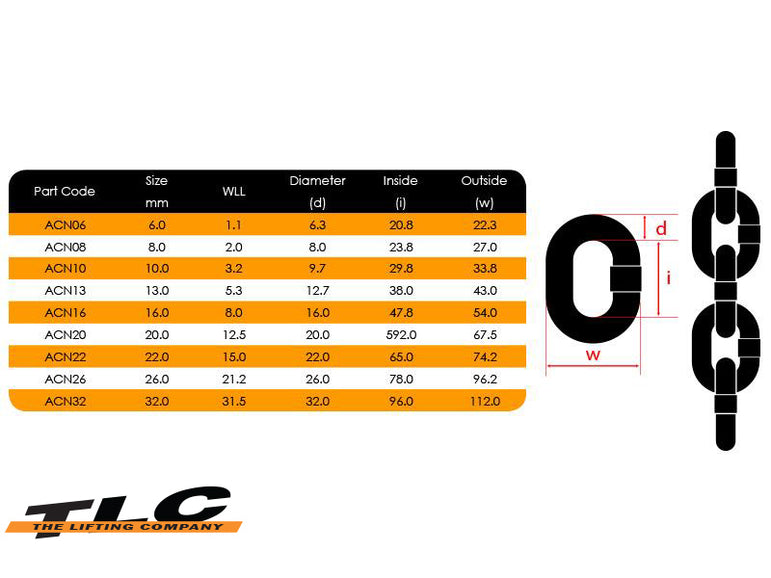

See the attached download for dimension specifications.
 |
|||||
| Part Code | Size mm | WLL | Diameter (d) | Inside (i) | Outside (w) |
| ACN06 | 6.0 | 1.1 | 6.3 | 20.8 | 22.3 |
| ACN08 | 8.0 | 2.0 | 8.0 | 23.8 | 27.0 |
| ACN10 | 10.0 | 3.2 | 9.7 | 29.8 | 33.8 |
| ACN13 | 13.0 | 5.3 | 12.7 | 38.0 | 43.0 |
| ACN16 | 16.0 | 8.0 | 16.0 | 47.8 | 54.0 |
| ACN20 | 20.0 | 12.5 | 20.0 | 592.0 | 67.5 |
| ACN22 | 22.0 | 15.0 | 22.0 | 65.0 | 74.2 |
| ACN26 | 26.0 | 21.2 | 26.0 | 78.0 | 96.2 |
| ACN32 | 32.0 | 31.5 | 32.0 | 96.0 | 112.0 |
