Alloy Chain Lifting Sling
Alloy Chain Lifting Sling

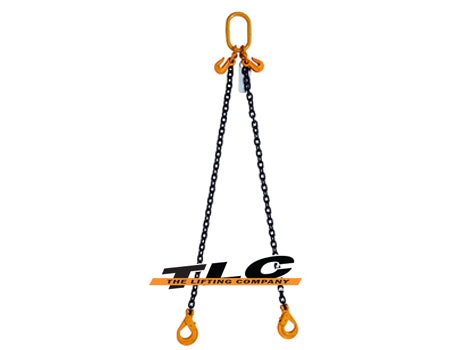

Each TLC chain sling is made to order based on your requirements. You can choose from single, 2, 3 and 4 leg configurations with variations on all components. Call TLC today to discuss your requirements and we will assist you in choosing the right parts for your lift.

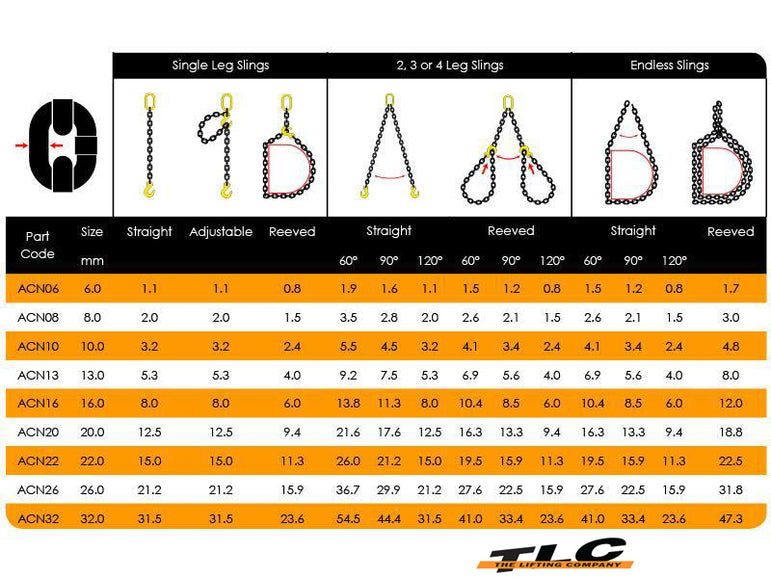

| Single Leg Slings | 2,3 or 4 Leg Slings | Endless Slings | ||||||||||||
 |
 |
 |
 |
|||||||||||
| Part Code | Size mm | Straight | Adjustable | Reeved | Straight | Reeved | Straight | Reeved | ||||||
| 60° | 90° | 120° | 60° | 90° | 120° | 60° | 90° | 120° | ||||||
| ACN06 | 6.0 | 1.1 | 1.1 | 0.8 | 1.9 | 1.6 | 1.1 | 1.5 | 1.2 | 0.8 | 1.5 | 1.2 | 0.8 | 1.7 |
| ACN08 | 8.0 | 2.0 | 2.0 | 1.5 | 3.5 | 2.8 | 2.0 | 2.6 | 2.1 | 1.5 | 2.6 | 2.1 | 1.5 | 3.0 |
| ACN10 | 10.0 | 3.2 | 3.2 | 2.4 | 5.5 | 4.5 | 3.2 | 4.1 | 3.4 | 2.4 | 4.1 | 3.4 | 2.4 | 4.8 |
| ACN13 | 13.0 | 5.3 | 5.3 | 4.0 | 9.2 | 7.5 | 5.3 | 6.9 | 5.6 | 4.0 | 6.9 | 5.6 | 4.0 | 8.0 |
| ACN16 | 16.0 | 8.0 | 8.0 | 6.0 | 13.8 | 11.3 | 8.0 | 10.4 | 8.5 | 6.0 | 10.4 | 8.5 | 6.0 | 12.0 |
| ACN20 | 20.0 | 12.5 | 12.5 | 9.4 | 21.6 | 17.6 | 12.5 | 16.3 | 13.3 | 9.4 | 16.3 | 13.3 | 9.4 | 18.8 |
| ACN22 | 22.0 | 15.0 | 15.0 | 11.3 | 26.0 | 21.2 | 15.0 | 19.5 | 15.9 | 11.3 | 19.5 | 15.9 | 11.3 | 22.5 |
| ACN26 | 26.0 | 21.2 | 21.2 | 15.9 | 36.7 | 29.9 | 21.2 | 27.6 | 22.5 | 15.9 | 27.6 | 22.5 | 15.9 | 31.8 |
| ACN32 | 32.0 | 31.5 | 31.5 | 23.6 | 54.5 | 44.4 | 31.5 | 41.0 | 33.4 | 23.6 | 41.0 | 33.4 | 23.6 | 47.3 |
