Arc M Series
Arc M Series
The Arc range of castors are designed with crisp, clean finishes ideally suited to modern, contemporary furniture.
Arc Castors are based on our K Series and M Series ranges, but with decorative finishes, powder coated in Anodic natural matt, with grey pedals and seals, and Chicago screw axles. Wheels come in four colourways—graphite, silver, white and clear, all with pearlescent pigment in the thread guards for that sophisticated high lustre look.

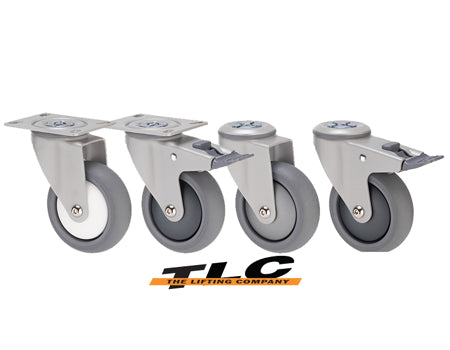

The 100 mm M Series castors shown below are stocked and available for next-day delivery. The M Series version can also be made to order in 75 mm and 125 mm sizes subject to a minimum order quantity of 200 pieces.
| Load rating: | 85 kg |
| Wheels: | Thermoplastic elastomer |
| Forks: | Powder coated in an anodic natural matt finish, in swivel plate, bolt hole and total brake configurations |
| Warranty: | Three years |
| Mount dimensions: | |
MJQ wheel
Max load: 85 kg
Material: Thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
Graphite colourway
| Order code: | MJQ100GGH |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Silver colourway
| Order code: | MJQ100GSL |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
White colourway
| Order code: | MJQ100GWT |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Titanium castors
Swivel plate
| Order code: | MJQ100G/MPPGH |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJQ100G/MPPTBGH |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole
| Order code: | MJQ100G/MPHGH |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJQ100G/MPHTBGH |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Silver castors
Swivel plate
| Order code: | MJQ100G/MPPSL |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJQ100G/MPPTBSL |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole
| Order code: | MJQ100G/MPHSL |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJQ100G/MPHTBSL |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
White castors
Swivel plate
| Order code: | MJQ100G/MPPWT |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJQ100G/MPPTBWT |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole
| Order code: | MJQ100G/MPHWT |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJQ100G/MPHTBWT |
| Max load: | 85 kg |
| Mount height: | 135 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
