Swivel Safety Hook

No review yet. Write Review

$0.00

Description

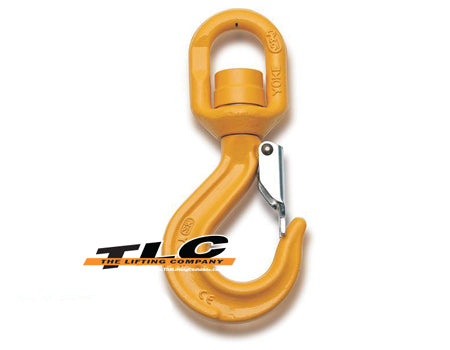

Swivel safety hook are ideal for a range of lifting applications. Swivel Bearing hooks are designed to be able to rotate while under load.

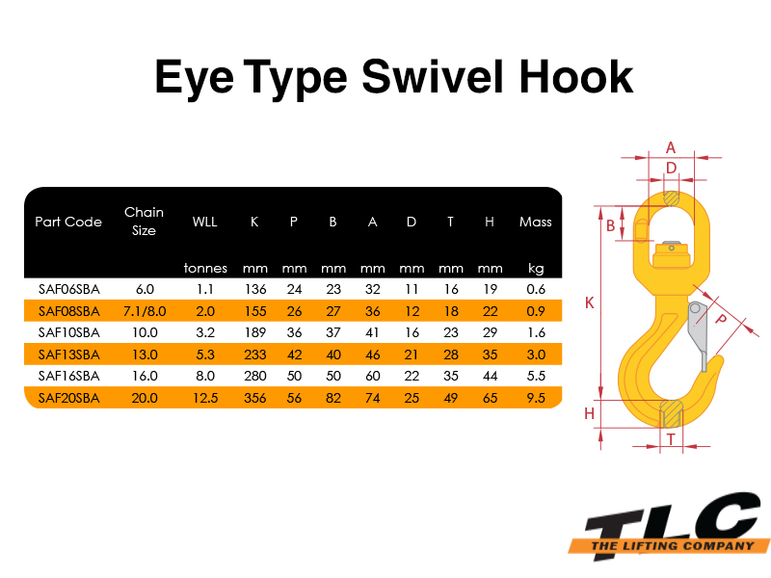

Part Code	Chain Size	WLL tonnes	K mm	P mm	B mm	A mm	D mm	T mm	H mm	Mass kg
SAF06SBA	6.0	1.1	136	24	23	32	11	16	19	0.6
SAFO8SBA	7.1/8.0	2.0	155	26	27	36	12	18	22	0.9
SAF1OSBA	10.0	3.2	189	36	37	41	16	23	29	1.6
SAF13SBA	13.0	5.3	233	42	40	46	21	28	35	3.0
SAF16SBA	16.0	8.0	280	50	50	60	22	35	44	5.5
SAF20SBA	20.0	12.5	356	56	82	74	25	49	65	9.5
